5604602, Phoenix Contact 15 Way D-sub Connector Plug

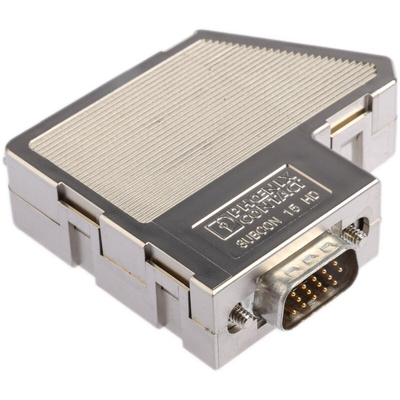

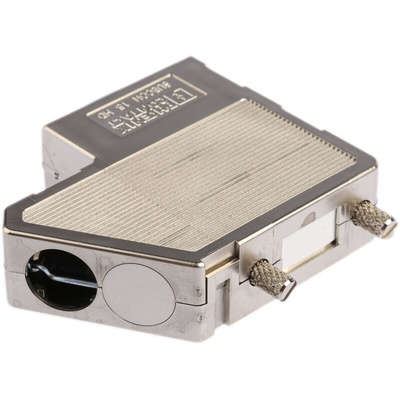

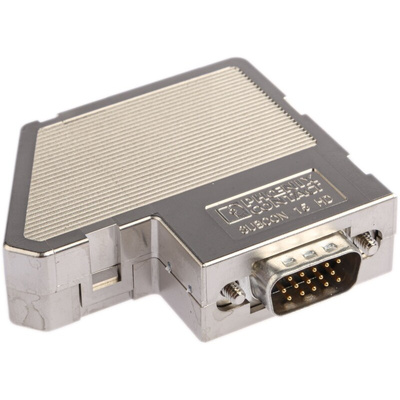

Phoenix Contact D-Sub Connector, Male Gender, 4mm To 12.7mm Cable Diameter Range - SUBCON 15 HD/M-SH - 5604602

Keep equipment securely plugged into your circuit board using this D-sub connector from Phoenix Contact. It lets you connect a device to your PCB to transmit data and signals. As you can insert cables that range in diameter from 4 to 12.7mm into the unit, it's a versatile option. There are screw locks on both sides keep a tight hold on the cable so it won't slip out in vibrating conditions.
As it's rated for more than 50 insertion and withdrawal cycles, you can rest assured that plugging and unplugging this connector multiple times won't wear it out. Compact external dimensions of 49.8 (H) x 16 (W) x 61mm (L) mean it takes up minimal space on your panel. The demands of harsh industrial settings are no problem, thanks to a wide operating temperature range between -20°C and +75°C.

Features & Benefits

• IP20 rating indicates it's touch-proof and protected against solid objects over 12mm
• Metal-plated ABS body delivers thermal resistance for durability
• Universal design for compatibility with common electrical systems

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief

D-SUB bus connector - Subcon 15 HD/M-SH - 5604602

Instruction Sheet - SUBCON 15 HD/M-SH

Line Drawing - 5604602
