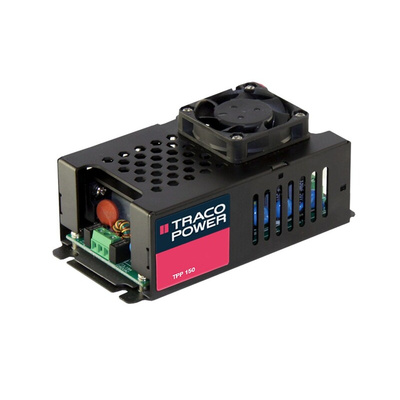

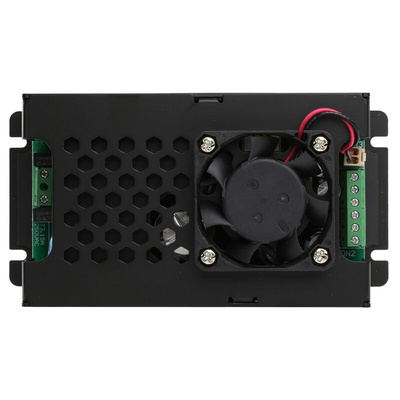

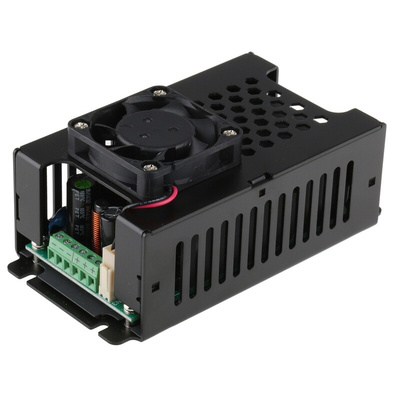

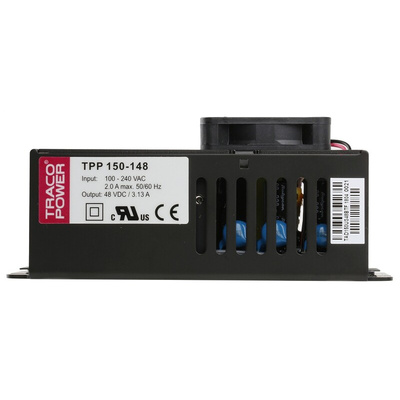

TRACOPOWER Switching Power Supply, TPP 150-148, 48V dc, 3.13A, 150W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

TRACOPOWER AC/DC Power Supply

The TRACOPOWER TPP -150 series 150W single output AC to DC embedded switch mode power supply has an output current rating of 3130mA at 48VDC. It has the universal input supply voltage ratings from 85VAC to 264VAC and 120VDC to 370VDC. The power supply features a reinforced double I/O isolation system, according to the latest medical safety standards. This power supply has excellent efficiency of up to 92% that allows high power density for the standard packaging format. The full load operating temperature range of this AC-DC power supply is -25°C to 50°C with 50% load de-rating. The power supply is built using industrial quality grade components and excellent thermal management that guarantees reliability.

Features and Benefits

Active power factor correction (>95)
Adjustable output voltage
Highest efficiency of 91 to 92% across 10% to 100% load range
Highest power density encased 150W power supply
Low leakage current <100 μA rated for BF applications
Operating up to 5000m altitude

Applications

Industrial and domestic fields
Safety and space critical applications

Certifications

2 x MOPP Medical safety according to AAMI/ANSI ES 60601-1:2005 (R)
2 x MOPP Medical safety according to IEC/EN 60601-1 3rd edition
Class II
