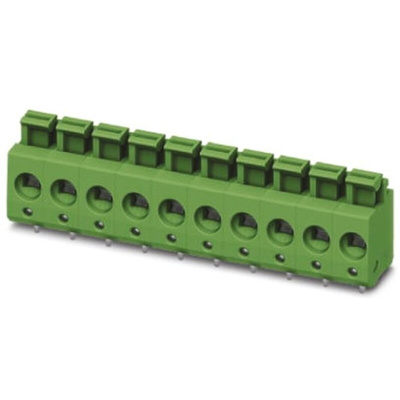

1792944, Phoenix Contact PTS 1.5/10-5.0-H Series PCB Terminal Block, 10-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Spring

Phoenix Contact COMBICON PTS 5.0mm PTS PCB Terminal Blocks

The 5 mm pitch PTS series of Horizontal, PCB mounted, Terminal Blocks from Phoenix Contact feature a direct plug-in spring-cage type connection and finger-operated release button.
The 5 mm PTS PCB Terminal Block can accept solid or stranded wire from 0.14 mm² to 2.5 mm² (26-14 AWG).
The rated current / cross section for the 5 mm PTS PCB Terminal Block is 12 A/2.5 mm².
The material Inflammability class is UL 94 V0 for the 5 mm PTS PCB Terminal Block.
The PCB requires a 1.2 mm diameter hole for the 5 mm PTS Terminal Block pins.

Phoenix Contact COMBICON 5.0mm PCB Terminal Blocks

PCB terminal block - PTS 1,5/10-5,0-H
