RS PRO Grey Cantilever Shelf 2U, 250mm x 483mm

Wall Mount Server Cabinets

From RS Pro, this range of server cabinets are ideal for housing small and medium sized networks. They are designed to be wall mounted and can accommodate a static load of up to 70 kg. These network cabinets offer a professional cable management solution and it is incredibly easy to install server racks within them.

These data cabinets feature a glass door and cylindrical lock as standard, which protects the hardware that runs your network. The side panels of the server rack cabinet can be opened from the inside, enhancing the security of the unit.

RS Pro rack cabinets are constructed from 1.2 mm thick steel and have an electrostatic power paint finish with a RAL 7035 grey colour. All models are supplied with 1 pair of heavy duty 19 inch mounting rails.

Options available:

• 8020267 - 2U Server Rack Drawer, 500 mm x 483 mm


• 8020273 – 2U Cantilever Shelf, 250 mm x 483 mm


• 8020276 - 3U Server Rack Drawer, 500 mm x 483 mm


• 8020279 – 1U Cantilever Shelf, 150 mm x 483 mm


• 8020282 – 2U Cantilever Shelf, 400 mm x 483 mm


• 8020295 - Adjustable Vertical Cable Organiser for use with 42U Rack Unit


• 8020298 - Steel Cable Entry Panel for use with 1U Rack Unit


• 8020302 - 1 Fan Module for Wall mount Enclosures


• 8020305 - Adjustable Vertical Cable Organiser for use with 47U Rack nit


• 8020311 - 2 Fan Module for Wall mount Enclosures


• 8020314 - 19-inch Ventilated Front Panel, 1U


• 8020318 - 19-inch Blanking Panel, 2U


• 8020320 - 6U Server Cabinet 366 x 600 x 560 mm, single wall mount cabinet


• 8020324 - 9U Server Cabinet 488 x 600 x 400 mm, single wall mount cabinet


• 8020327 - 6U Server Cabinet 366 x 600 x 400 mm, single wall mount cabinet


• 8020330 - 12U Server Cabinet 621 x 600 x 560 mm, single wall mount cabinet


• 8020333 - 9U Server Cabinet 488 x 600 x 560 mm, single wall mount cabinet


• 8020336 - 12U Server Cabinet 621 x 600 x 400 mm, single wall mount cabinet

Typical Applications

A server rack drawer, also known as a rackmount drawer or rackmount storage, fits into a server rack unit and is an ideal place to store equipment. These rack drawers can be placed on or underneath a rack or shelf and are ideal for items such as manuals, software, test equipment, keyboards and many others. This helps to save space and keep the area organised and tidy which is important in any server room or data centre environment.

Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.

Approvals

UL, GOST-R certificated.

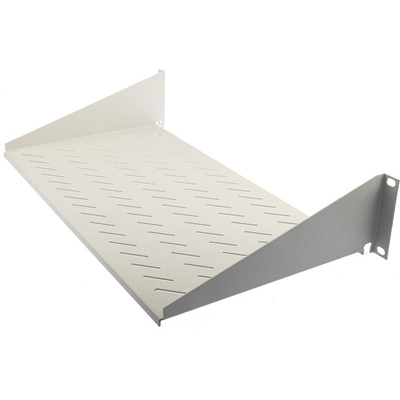

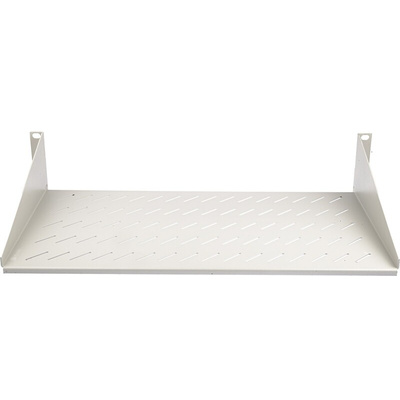

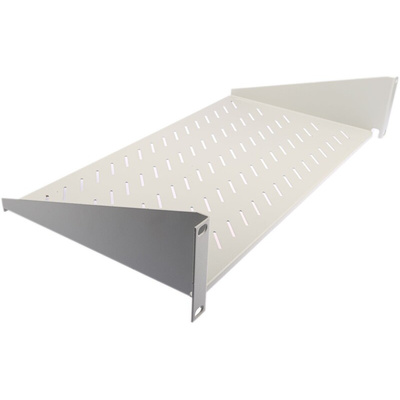

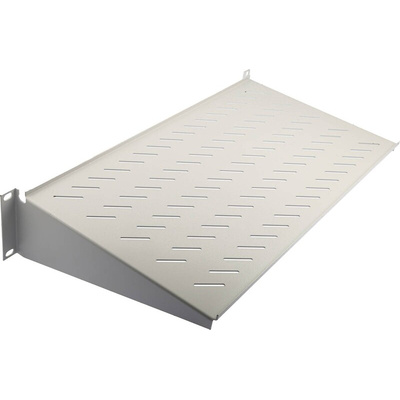

RS PRO 19 Inch Server Rack Cabinet Cantilever Shelf, Grey

Introducing the RS PRO Server Rack Cantilever Shelf range, suitable for use in most standard 19-inch server cabinets. This fixed shelf is ideal for securely holding electronic devices like keyboards, monitors and more due to its lightweight, but reliable and durable construction. Designed with vented slots, the shelf allows greater air circulation which is especially valuable when holding devices that may normally be prone to overheating. Additionally, this RS PRO shelf range is available in a wide range of sizes, making it an incredibly versatile server rack accessory piece, suitable for a wide variety of applications.

Features and Benefits:

• This RS PRO cantilever server rack shelf is compatible with most standard 19-inch rack cabinets


• These fixed shelves are an ideal solution for holding devices such as keyboards or other electronic equipment

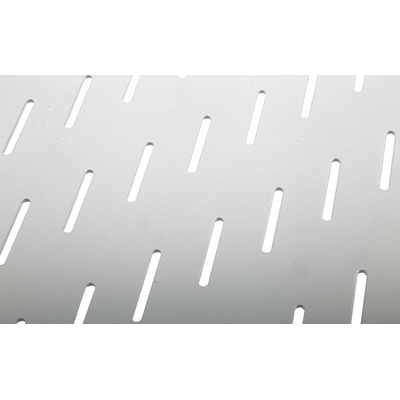

• Vented slots to allow sufficient air circulation, especially when storing equipment that may be prone to overheating


• The self itself is manufactured from 1.5 mm steel ensuring a durable construction and powder-coated to ensure durability and corrosion resistance, even in extreme environments


• Additionally, the powder coating offers a smooth surface that’s easy to keep clean of dust and debris that may impact the performance of any equipment stored on the shelf


• Using 19-inch assembly with four anchoring points for secure mounting inside the server rack, this fixed cantilever shelf offers confidence in securely holding valuable equipment


• Multiple sizes available within the range

Applications:

Server rack trays or shelves are a type of accessory designed to be installed with server rack cabinets. They are often used to hold devices such as keyboards or other electronics equipment, allowing them to be securely installed whilst saving space. Many of these shelves or trays feature extendable guide rails allowing them to be extended and retracted when required for extra versatility depending on the application they are used for. They are commonly designed with vented slots allowing for sufficient air circulation and sometimes offer additional space for cable management accessories to ensure cabling is stored safely and securely.

What other articles are in this RS PRO range?

802-0279 1U 150mm Deep 25kg Max. static load weight capacity
802-0273 2U 250mm Deep 25kg Max. static load weight capacity
802-0282 2U 400mm Deep 25kg Max. static load weight capacity
