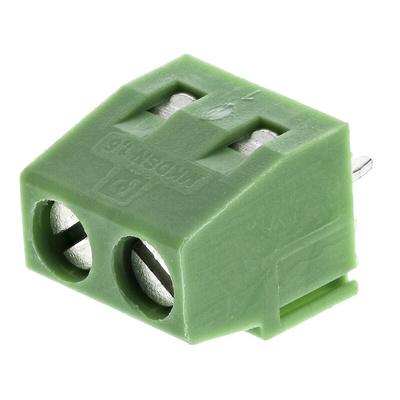

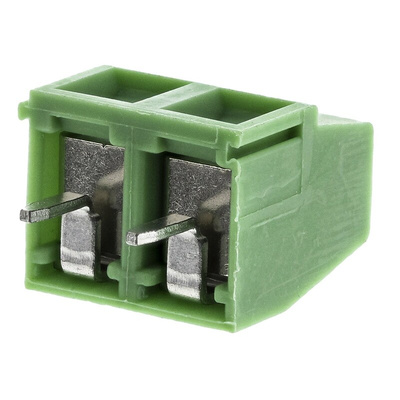

1729018, Phoenix Contact MKDSN 1.5/ 2 Series PCB Terminal Block, 2-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact PCB Terminal Strip, Polyamide Housing, 13.5A Current Rating - MKDSN 1,5/2 - 1729018

Use this 2-position PCB terminal strip from Phoenix Contact to pull double-duty when connecting wires to your board. Its contacts are made from a highly conductive copper alloy that helps ensure steady current transmissions to your circuit. As these contacts come with robust tin plating, they stand up to corrosion in harsh environments. Thanks to its compact size of 5mm, you can fit small conductors into this unit.
Getting step is fuss-free, as there are screw connections with tension sleeves that lock your wiring in. As it's been tested against vibration of up to 5g, you can trust this module to hold connections steady, even when things get shaky. With tough polyamide housing delivering insulation protection, there's minimal risk of faulty currents sparking up problems in your system.

Features & Benefits

• Flammability rating of UL 94-V0 indicates burning will stop in 10 seconds
• Current rating of 13.5A for safe use in high-power systems
• Rated surge voltage of 4kV to withstand current overloads
• Compact external dimensions of 8.1 (L) x 5mm (W) to save space in your setup

Phoenix Contact COMBICON 5.0mm PCB Terminal Blocks

MKDSN 1,5/ 2

Line Drawing - 1729018
