1733169, Phoenix Contact Insertion Bridge for use with 2 Way Connectors with 5/5.08 mm Pitch

Phoenix Contact Terminal Block Jumper

Professional range of Phoenix Contact fully insulated terminal block side jumpers.

Various positions available
3.81, 5 or 5.08 mm pitch

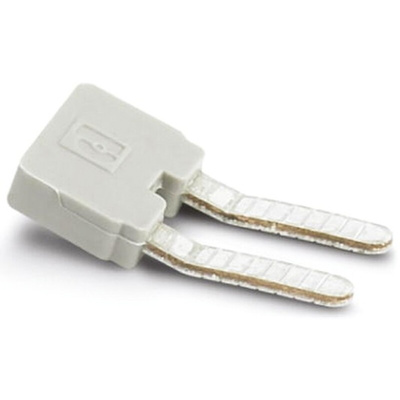

Phoenix Contact Insertion Bridge For 2-Way 5/5.08mm Connectors, 5mm Pitch, Single Row - EBP 2- 5 - 1733169

Use this insertion bridge from Phoenix Contact to connect two terminal points in your electrical circuit. It's a double banana plug with conductor bars that are electrically connected. The device serves as a compact alternative to wire connections and can make your circuit structure tidy and easier to troubleshoot. To prevent accidental actuation when the terminals are disconnected from each other it creates a short circuit, which enhances safety.
This component is simple to install without the need for complex tools. Its copper alloy contacts are highly conductive to give you a stable connection. As they're tin-plated, they won't corrode, so you can use the bridge in harsh and damp environments. With a current rating of 12A, this unit performs optimally in high-current consuming operations. Insertion bridges like this are commonly found in prototyping applications, as well as in the robotics and automation industry.

• Polyamide insulation to protect you from electric shocks
• UL94 V0 rating indicates that burning stops within 10 seconds in the event of a fire
