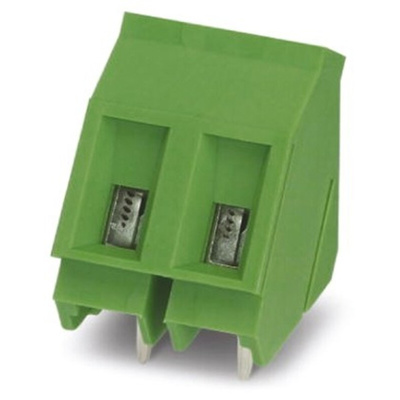

1733729, Phoenix Contact GSMKDS 3/2-7.62 Series PCB Terminal Block, 2-Contact, 7.62mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact COMBICON GMKDS 7.62mm PCB Terminal Blocks

The GMKDS range of PCB terminal blocks from Phoenix contact are great 7.62mm blocks that are through-hole and can easily be wave soldered to the PCB. These PCB Terminal blocks feature a low-temperature rise thanks to maximum contact force and have integrated protective guards that prevent you incorrectly inserting the conductors underneath the tension sleeve. The GMKDS terminal blocks are also a 7.62 mm pitch to have an increased voltage up to 630 V.

They're made from a durable and strong PA (Polyamide-Nylon) material and the material of the contact is CU (Copper). Furthermore, you simply just need to strip 8mm from your wire and insert them into the ports and simply tighten down an M3 screw for a secure and reliable connection over a long time.

Features and benefits:

• Allows connection of two conductors


• Protective guides prevent you from incorrectly inserting the conductors underneath the tension sleeve


• Worldwide known connection gives you maximum extensive compatibility


• Latching on the side of the unit enables various mounting positions to be combined


• Nominal current of 24 A


• Allows quick and easy connection to circuit boards once you've soldered it


• 7.62 mm Pitch
