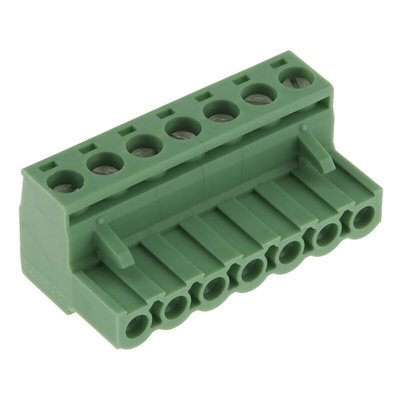

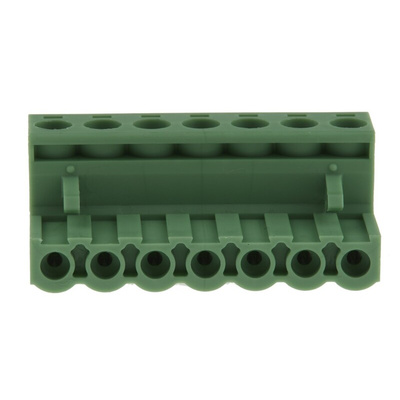

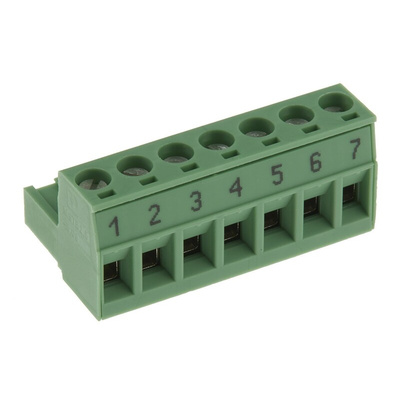

1746583, Phoenix Contact 5.08mm Pitch 7 Way Pluggable Terminal Block, Plug, Plug-In, Screw Termination

Phoenix Contact Pluggable Terminal Block, Single Row, 24 to 12AWG - MSTB 2,5/ 7-ST-5,08 BD:1-7 - 1746583

For a swift and easy wire connection to your board, opt for this pluggable terminal block from Phoenix Contact. It's a single-row unit with seven contacts so you'll have enough space to connect multiple cables. Screw terminals with tension sleeves ensure your wires sit tightly. The contacts are made from highly conductive copper alloy for reliable current transmission. A plating of corrosion-resistant tin boosts their durability. Thanks to the nominal current rating of 12A, you can be sure this is a suitable choice to handle high-power transmissions to your circuit.
As the block accepts wires that range in size from 24 to 12AWG, you'll have flexibility in your cable connections. Its robust PA housing offers insulation against electric shocks, so you can rest assured that you're in safe hands when setting it up in everything from medical equipment to lighting fixtures.

Features & Benefits

• UL 94-V0 flammability rating indicates that burning stops in 10 seconds
• 25 insertion and withdrawal cycles for durability
• Rated surge voltage of 4kV to endure current surges
• Wide operating temperature range of -40°C to +100°C means it withstands harsh conditions

Datasheet 1746583

Line Drawing - 1746583
