1751251, Phoenix Contact MKDS 1/ 3-3.5 Series PCB Terminal Block, 3-Contact, 3.5mm Pitch, Through Hole Mount, 1-Row, Screw

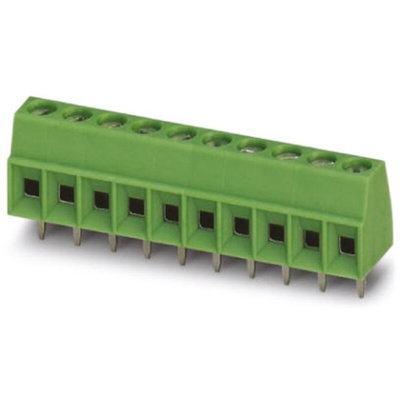

Phoenix Contact COMBICON MKDS 3.5 mm PCB Terminal Blocks

Professional Phoenix Contact MKDS series wire to board 3.5 mm pitch connectors

3.5 mm pitch
Screw connection
28 - 16 wire gauge range
Green

Phoenix Contact PCB Terminal Block, 3.5 mm Pitch, 3-way - MKDS 1/3-3.5 - 1751251

When you need a reliable way to connect two or more wires in your electronic systems, this Phoenix Contact 3-way PCB (printed circuit board) terminal block is a straightforward solution. It can be attached directly to your PCB board thanks to its simple through-hole mounting. You can secure its connections easily with just the tightening of a screw.
The block is highly versatile, accepting both solid and strained cables within a broad wire size range of 0.14 mm² to 1.5 mm². Its green polyamide material has UL (Underwriter Laboratories) 94 V-0 certification, which indicates a good level of flame resistance – it will burn for no more than 10 seconds if exposed to a naked flame.
This product can be found in common electronic devices like laptops, as well as household appliances and circuitry in industrial equipment.

• Straight body orientation
• Male gender
• Polyamide material
• 3 contacts
• Single row
• Screw termination method
• Current rating of 13.5 A
• Voltage rating of 200 V
• Width of 7.3 mm
• Length of 7 mm
• Pitch of 3.5 mm

MKDS 1/ 3-3,5
