1751248, Phoenix Contact MKDS 1/ 2-3.5 Series PCB Terminal Block, 2-Contact, 3.5mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact COMBICON MKDS 3.5 mm PCB Terminal Blocks

Professional Phoenix Contact MKDS series wire to board 3.5 mm pitch connectors

3.5 mm pitch
Screw connection
28 - 16 wire gauge range
Green

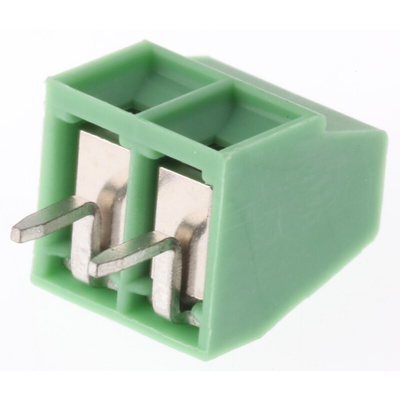

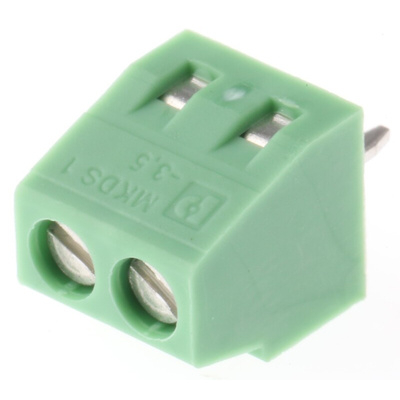

Phoenix Contact PCB Terminal Strip, 3.5 mm Pitch, 2-way - MKDS 1/2-3.5 - 1751248

To terminate wires safely and securely, choose this printed circuit board (PCB) terminal strip from Phoenix Contact. The simple screw terminals ensure a secure fit and easy installation without the need for special tools. This is especially useful in systems that require frequent inspections or wire replacement and repair, such as domestic and semi-automated industrial applications.
This terminal strip has two contacts in a single row. Its compact design and 3.5 mm pitch make it suitable for use in smaller assemblies with tight installation setups. The robust polyamide construction means superior strength and the ability to endure tough industrial environments.
This material also has a fire safety rating of UL (Underwriter Laboratories) 94 V-0, meaning it stops burning within 10 seconds of exposure to a naked flame.

• Straight body orientation
• Green colour
• Current rating of 13.5 A
• Male gender
• Length of 3.5 mm
• Polyamide material
• Through-hole mounting type
• 2 contacts
• Single row
• Pitch of 3.5 mm
• MKDS 1/2-3.5 series
• Screw termination method
• Voltage rating of 200 V
• Width of 7.3 mm

Datasheet

Dimension Sheet - 1751248

Catalogue - Terminal Block
