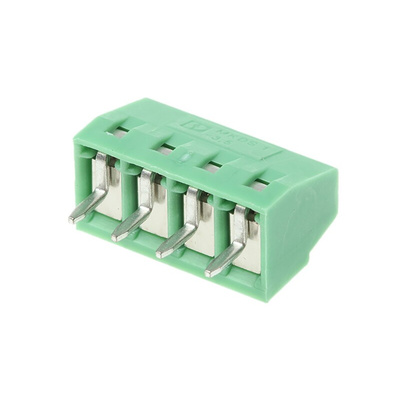

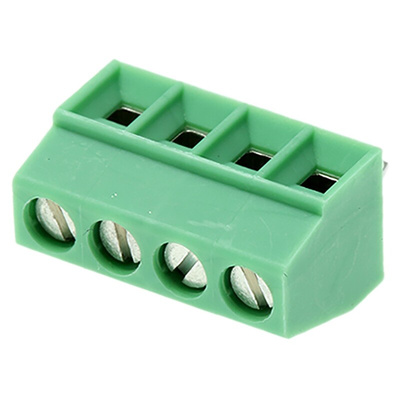

1751264, Phoenix Contact MKDS 1/ 4-3.5 Series PCB Terminal Block, 4-Contact, 3.5mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact COMBICON MKDS 3.5 mm PCB Terminal Blocks

Professional Phoenix Contact MKDS series wire to board 3.5 mm pitch connectors

3.5 mm pitch
Screw connection
28 - 16 wire gauge range
Green

Phoenix Contact PCB Terminal Block, 3.5 mm Pitch, 4-way - MKDS 1/4-3.5 - 1751264

This compact terminal block from Phoenix Contact lets you wire and connect your PCBs (printed circuit boards) efficiently and save on space. It has flexible screw connectors that stop wires from getting damaged and its universal connecting format means it's compatible with most circuit boards.
You can attach electrical wires easily using the screw-in points. You don't need to worry about conductors coming loose as the component's built-in locking system keeps wiring firmly in place. This also removes the need for re-tightening. The terminal block features low temperature rise so it won't overheat.
Solder points on this terminal block allow you to securely connect it to a PCB while maintaining good electrical conductivity. It's also supplied pre-assembled, so you can save on mounting and installation time. This component is simple in design, which makes it easy to service.

• Straight body orientation
• Green colour
• Current rating of 13.5 A
• Male gender
• Polyamide material
• Through-hole mounting type
• 4 contacts
• Single row
• Voltage rating of 200 V
• Pitch of 3.5 mm
• Dimensions of 7.3 (length) x 7.3 (width) x 8.5 mm (depth)

MKDS 1/ 4-3,5

Dimension Sheet - 1751264

Catalogue - Terminal Block
