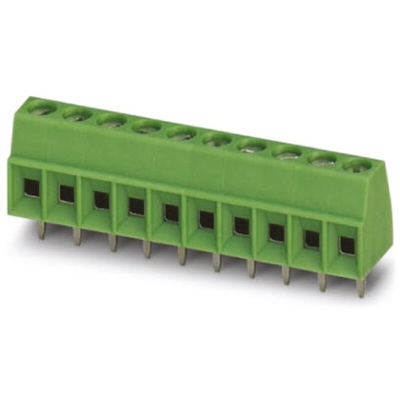

1751329, Phoenix Contact MKDS 1/10-3.5 Series PCB Terminal Block, 10-Contact, 3.5mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact PCB Terminal Strip, Male Gender, 13.5A Current Rating - MKDS 1/10-3,5 - 1751329

Boost connectivity in your board setup with this PCB terminal strip from Phoenix Contact. By linking ten circuits to a board, it provides plenty of space to plug devices into your system. Conductive tin-plated copper alloy contacts let power flow freely through the unit and keep connections reliable during critical processes. Installing the block is no trouble as secure through-hole mounting fixes it in place. With a narrow 3.5mm pitch, it slots onto busy boards without a hitch.
Need to install this terminal strip around moving equipment? Not a problem. Its durable PA housing stands up to impacts to guard sensitive internal elements. Screw terminals are on hand to firmly grip conductors sized between 0.14 and 1.5mm² and clamp down on disruption caused by vibration. As the block has all its pins in one row, it's an easy fit for busy boards.

Features & Benefits

• Handles surge voltages up to 2.5kV to avoid damage from power faults
• Works in operating temperatures between -40°C and +105°C, pushing through tough conditions
• UL 94 V-0 flammability rating, effectively stopping the spread of fire in 10 seconds
• Meets IEC 60999 standards to prevent wire damage

MKDS 1/10-3,5

Line Drawing - 1751329
