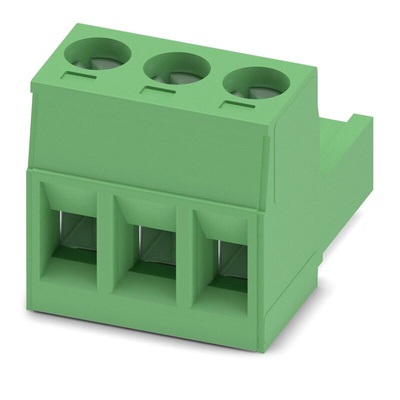

1754465, Phoenix Contact 5mm Pitch 3 Way Pluggable Terminal Block, Plug, Plug-In, Screw Termination

Phoenix Contact CLASSIC COMBICON MSTB 2,5 5.0mm Plug-in Terminal Block Connectors

The MSTB connectors from Phoenix Contact are from their COMICON range that is very well known for its simplicity but brilliant quality. These connectors feature multiple connection technologies so you can have maximum versatility to use one header for all applications. Not to mention, these connectors can come either in a right-angle orientation or straight orientations for maximum options. MSTB connectors feature a closed contour to help ensure the plug-in connector has good stability. Also, the MSTB series have a low-temperature rise thanks to their maximum contact force and feature an integrated double steel spring that adds additional safety to help prevent temperature and power fluctuations.

The connectors are 5mm pitched, have Cu (Copper) alloy contacts and the housing is made from a polyamide material.

Features and benefits:

• Well known mounting principle allows for worldwide use


• The MSTB series can be used for all PCB connectors thanks to allowing multiple connection technologies


• Built from a durable Polyamide material


• Linear pinning that is designed to be soldered by a wave soldering technique (through-hole)


• Easy connection to the PCB - simply crimp your wire into a header and plug-in to these connectors


• Maximum contact force - low-temperature rise


• Dual steel spring - prevents power & temperature fluctuations

Phoenix Contact MSTB 2.5/3-ST Series Pluggable Terminal Block, 12A, Screw Termination - 1754465

This Phoenix Contact pluggable terminal block in green is a versatile solution designed for automation, electronics, electrical, and mechanical industries. With a current rating of 12A, this plug in terminal block is ideal for a variety of applications where reliability is key. The terminal block features three positions, making it suitable for connecting multiple components with ease. The polyamide material ensures durability, while the screw termination method allows for secure connections.

Features & Benefits

• Phoenix contacts terminal block with a current rating of 12A
• Green colour for easy identification and organisation
• Three positions for connecting multiple components
• Polyamide material for durability and reliability
• Screw termination method for secure connections

Applications

• Used for connecting electrical components in automation systems
• Ideal for power distribution in electronic devices
• Suitable for motor control applications in industrial settings
• Used in lighting fixtures for secure wire connections
• Suitable for data and signal transmission in control panels

Can it handle high voltage applications?

The Phoenix Contact pluggable terminal block is rated for voltages up to 320V, making it suitable for a wide range of applications.

Will it fit standard screw sizes for secure connections?

Yes, the terminal block features a screw termination method that allows for secure and reliable connections.

Is it suitable for use in outdoor environments?

The polyamide material used in the terminal block ensures durability, making it suitable for both indoor and outdoor applications.

Can it support different wire sizes for flexibility?

The terminal block can accommodate various wire sizes, providing flexibility in your electrical connections.

Is it easy to install and use?

The plug-in design of the terminal block allows for easy installation and use, making it a convenient solution for your connectivity needs.

Phoenix Contact COMBICON 5.0mm Two Part Terminal Blocks

MSTB 2,5/ 3-ST

Line Drawing - 1754465
