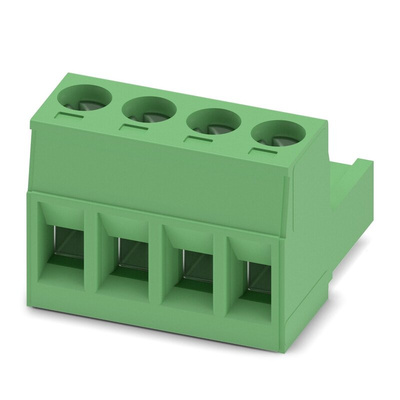

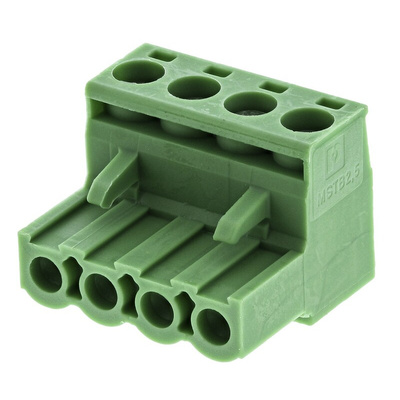

1754481, Phoenix Contact 5mm Pitch 4 Way Pluggable Terminal Block, Plug, Plug-In, Screw Termination

Phoenix Contact Pluggable Terminal Block, 320V Voltage Rating, 12A Contact Rating - MSTB 2,5/ 4-ST - 1754481

Looking for a secure way to make connections on your PCB? Pick this pluggable terminal block from Phoenix Contact. It's a breeze to connect it to a board by crimping a wire to a header and simply plugging it in. The 5mm pitch leaves you plenty of room to wire up to 4 contacts, while a tension sleeve keeps a firm hold on the circuit board even in vibrating conditions.
The terminal block has copper contacts, which are highly conductive to give you fast connection speeds. Its polyamide housing is suitably hardwearing for use in demanding applications. You can use this unit with conductors between 24 and 12AWG, so it's a versatile wiring solution.

Features & Benefits

• Screw termination keeps wiring secure against vibration
• Can be safely inserted and withdrawn up to 25 times for repeated use
• Compact dimensions of 20 (W) x 18.2 (L) x 15mm (H) mean it takes up minimal space on your PCB
• Tin-plated copper contacts are resistant to corrosion in harsh industrial settings
• Broad operating temperature range between -40°C and +100°C

Phoenix Contact COMBICON 5.0mm Two Part Terminal Blocks

Datasheet 1754481

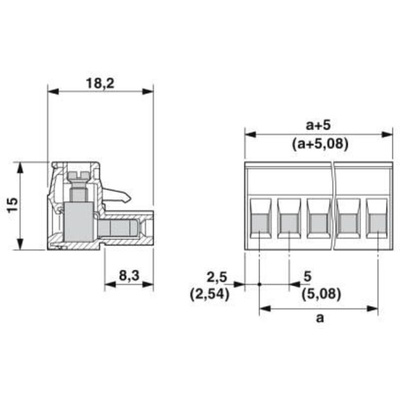

1754481 Drawing

Line Drawing - 1754481
