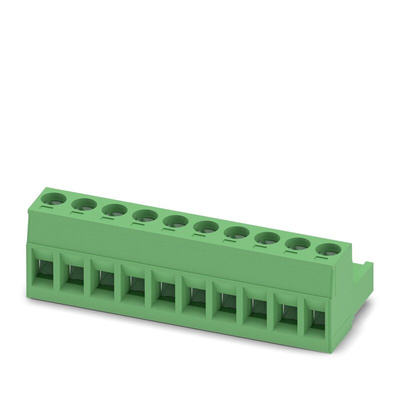

1754601, Phoenix Contact 5mm Pitch 10 Way Pluggable Terminal Block, Plug, Plug-In, Screw Termination

Phoenix Contact Pluggable Terminal Block, Straight Body, 12A Current Rating - MSTB 2,5/10-ST - 1754601

Making multiple electrical connections to your PCB is a cinch with this 10-way pluggable terminal block from Phoenix Contact. Thanks to its handy female socket contacts, it's also easy to disconnect cables when you need to troubleshoot your setup or do a bit of routine maintenance. A wide 5mm pitch gives you plenty of room to manoeuvre during installation and helps minimise the risk of voltage or current leakage. As it has a maximum voltage rating of 320V, this is a reliable option for factory automation, medical technology and the aerospace industry.
The robust polyamide housing can handle wear, abrasion and chemical contamination in heavy-duty environments without breaking stride. This high-performance material is also electrically resistant, so you can be sure you won't get a shock if you touch the terminal block while it's in use.

Features & Benefits

• Compatible with wires between 24 and 12AWG for versatility
• Tin contact surfaces are corrosion resistant
• Flame-retardant exterior is self-extinguishing in under 10 seconds to help prevent the spread of fire
• Rated surge voltage of up to 4kV protects your equipment in the event of fault

Phoenix Contact COMBICON 5.0mm Two Part Terminal Blocks

MSTB 2,5/10-ST

Line Drawing - 1754601
