1500363, Phoenix Contact Straight 4 way M8 to Unterminated Sensor Actuator Cable, Разъем

8025482
Номер производителя: 1500363Производитель: Phoenix Contact
Цена за шт.
9243.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Flush Type Sensor/Actuator M8 Connectors, M8/10/12 Thread Types, Free End Litz Wire

Phoenix contact M8 flush mount connectors with 0.5m of PVC litz wire. These 3 and 4 way panel mount connectors are A-coded and have 3-4 strands of 0.25mm2 free end litz wire measuring 0.5 metres in length to terminate to your particular application, IP67 rated once mated with a rating of 4A at 30V (4 pole) and 4A at 60V (3 Pole) , with a M8/M10/M12 fastening thread where applicable.

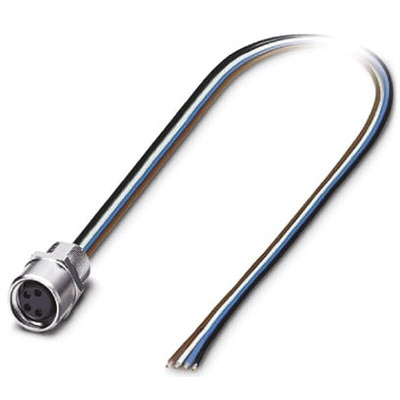

Phoenix Contact Flush-Type Connector, 4 Contacts, M8 - SACC-E-M 8FS-4CON-M8/0.5 - 1500363

Power your sensors and actuators in factory automation applications using this flush-type connector from Phoenix Contact. The unit comes pre-assembled with a Litz wire so it's ready to mount for immediate use, saving time during installation.
The connector is sealed on the Litz wire side, so you can be confident of reliable signal transmission with no loss from leakages. A uniform design makes it easy to fit into modular automation systems, so it's a versatile choice.
Nickel-plated brass knurls on the body give good grip for quick and comfortable assembly, while gold contact plating makes this unit highly resilient to rust and corrosion. TPU (thermoplastic elastomer) conductor sheathing protects the cable from damage caused by creep or general wear. This connector is rated IP67 (ingress protection), meaning it's totally dust-resistant and can withstand strong jets of water, so it's suitable for use in tough environments.

• Polymer housing material for durability and insulation against shocks
• Bulkhead mounting type for robust installation
• Wide operating temperature range of -25°C to +85°C for use in extreme environments

Техническая спецификация
pdfFlush-type connector - SACC-E-M 8FS-4CON-M8/0,5 - 1500363
Кодирование:
A
Номинал тока:
4 A
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-25°C
Разъем 1:
M8
Разъем 1, Количество контактов:
4
Разъем 1, Ориентация:
Прямой
Разъем 2:
Unterminated
Степень защиты IP:
IP67
