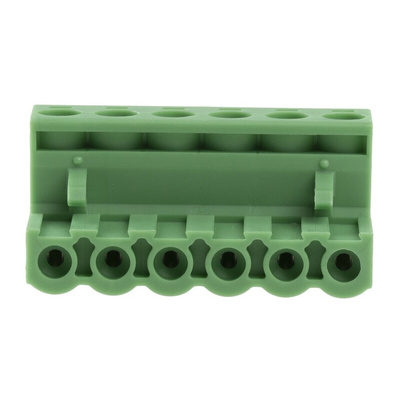

1758380, Phoenix Contact 5.08mm Pitch 6 Way Right Angle Pluggable Terminal Block, Plug, Plug-In, Screw Termination

Phoenix Contact Pluggable Terminal Block, 12A Current Rating, 24 to 12AWG - MSTB 2,5/ 6-ST-5,08 BD:1-6 - 1758380

Need to make secure connections in your industrial setup? Pick up this pluggable terminal block from Phoenix Contact. It has six positions to give you plenty of connection potential. Thanks to compact dimensions of 18.3 (L) x 30.48 (W) x 15mm (H), it slots easily into a busy PCB, while a wide 5.08mm pitch makes wiring a breeze.
The block's highly conductive tin contacts make light work of signal transfer. And to make sure it stands the test of time, it comes housed in robust polyamide housing that shrugs off wear and tear. As this unit weighs just 10.43g, it minimises strain on your system. You can get set up in two ticks using the straightforward screw connection and tension sleeve.

Features & Benefits

• Plug-in mounting makes installation fast and simple
• Green colour means it's easy to spot in a crowded setup
• UL 94-V0 rating indicates burning stops in less than 10 seconds if there's a fire
• High contact force means minimal temperature rise, so it's energy-efficient
• Surge protection of 4kV prevents overvoltages from damaging your equipment

Datasheet 1758380

Line Drawing - 1758380
