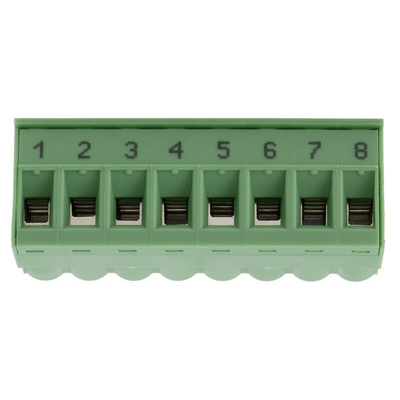

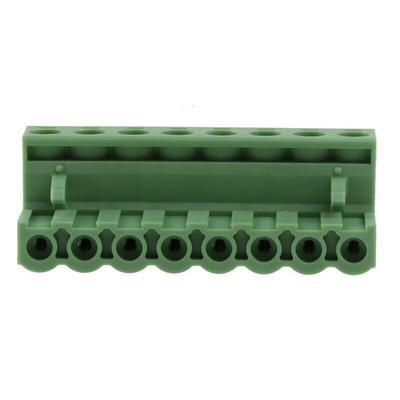

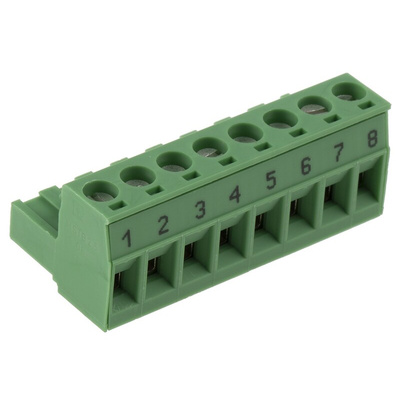

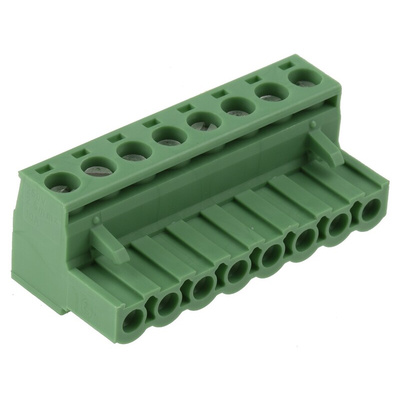

1758393, Phoenix Contact 5.08mm Pitch 8 Way Right Angle Pluggable Terminal Block, Plug, Plug-In, Screw Termination

Phoenix Contact Pluggable Terminal Block, 12A Current Rating, 0.2 to 2.5mm² Screw Connection - MSTB 2,5/ 8-ST-5,08 BD:1-8 - 1758393

Want to secure wires to your PCB in a jiffy? Grab this pluggable terminal block from Phoenix Contact. As it has eight contacts in a single row, this device boosts your connection potential and makes the most of space in your system. Thanks to a voltage rating of 320V, it's suited to high-power industrial applications.
The unit's designed to achieve maximum contact force, which minimises temperature rise, so it's an energy-conscious option. Inbuilt 4kV-rated surge protection stops potential damage caused by hazardous overvoltages. Thanks to an operating temperature range of -40°C to +100°C, this unit takes challenging conditions in its stride. Its robust polyamide housing material withstands impacts and abrasion, so it's a dependable option for demanding applications.

Features & Benefits

• Wide 5.08mm pitch makes wiring easy
• UL 94 V-0 flammability rating means it's self-extinguishing in under 10 seconds in the event of fire
• Screw termination method with a tension sleeve for fast and simple installation
• M3 screws are industry-standard so it's widely compatible
• Accommodates commonly used wires between 24 and 12AWG for versatility

Datasheet 1758393

Line Drawing - 1758393
