1758403, Phoenix Contact 5.08mm Pitch 10 Way Pluggable Terminal Block, Plug, Plug-In, Screw Termination

Phoenix Contact CLASSIC COMBICON MSTB 5.08mm PCB Terminal Blocks

A range of Classic COMBICON MSTB 5.08 mm pitch plug-in cable mount terminal block connectors from Phoenix Contact. The user-friendly PCB terminals feature a 0.2 mm² to 2.5 mm² screw connection that forms a standard plug-in system for 320 V (III/2).

CLASSIC COMBICON MSTB - Features and Benefits:

• Secure screw connection
• Well-known connection principle allows you to use worldwide
• Maximum contact force gives low temperature rise
• Long service life

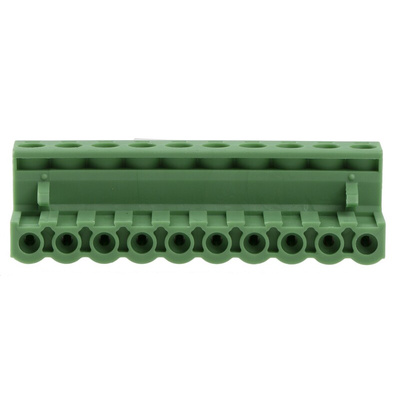

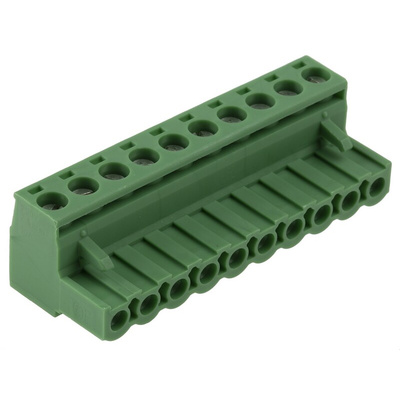

Phoenix Contact PCB Terminal Block, 10 Way, 12A Current Rating - MSTB 2.5/10-ST-5.08 BD:1-10 - 1758403

This 10-pin PCB terminal block from Phoenix Contact is a straightforward way to connect power cables to a PCB. Conductors are fixed in place using a screw connector with a tension sleeve, which supports a secure and reliable connection. It also achieves maximum contact force, which minimises temperature rise and reduces the risk of fire. For an additional level of protection, the robust thermoplastic housing is flame-retardant.
Integrated test points make it easy to take measurements without removing the wiring or other accessories. This product is ideal for designs needing a secure and semi-permanent wire connection that can be readily swapped out for inspection or repair.
The polyamide insulator is corrosion-resistant and abrasion-resistant to maximise the product’s service life. As part of Phoenix’s CLASSIC COMBICON system, this terminal block offers plug-in mounting for ease of installation.

• Compact dimensions of 18.3 (L) x 50.8 (W) x 15mm (H) and a pitch of 5.08mm for hassle-free wiring in small spaces
• VDE, CSA and EAC approvals guarantee the block meets essential international standards of safety

Datasheet 1758403
