1762208, Phoenix Contact 5.08mm Pitch 3 Way Pluggable Terminal Block, Plug, Plug-In, Screw Termination

Phoenix Contact CLASSIC COMBICON MSTB 5.08mm PCB Terminal Blocks

A range of Classic COMBICON MSTB 5.08 mm pitch plug-in cable mount terminal block connectors from Phoenix Contact. The user-friendly PCB terminals feature a 0.2 mm² to 2.5 mm² screw connection that forms a standard plug-in system for 320 V (III/2).

CLASSIC COMBICON MSTB - Features and Benefits:

• Secure screw connection
• Well-known connection principle allows you to use worldwide
• Maximum contact force gives low temperature rise
• Long service life

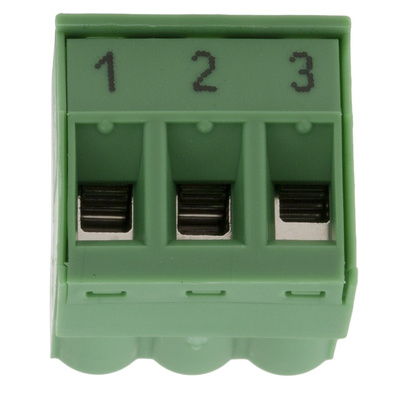

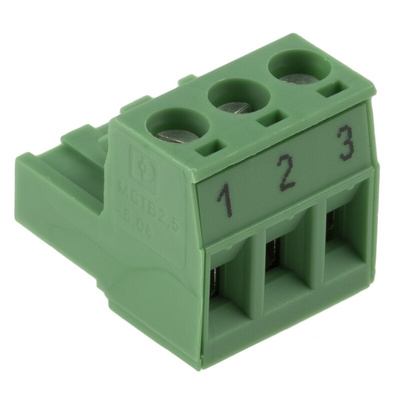

Phoenix Contact PCB Terminal Block, Female, 12A Current Rating - MSTB 2.5/ 3-ST-5.08 BD: 1-3 - 1762208

Make wiring devices to your PCB easy with this terminal block from Phoenix Contact. It has three positions to let you add more devices to your setup and build a bespoke system that fits your application's needs. As the unit supports both solid and stranded conductors with cross-sections between 0.2 and 2.5mm², it's versatile enough to suit many industry-standard connections. The tin-plated copper-alloy contacts form effective electrical connections so you get uninterrupted power and reliable performance.
The block's 5.08mm pitch and 15.24mm width means it uses minimal space on your circuit board, so is suitable for busy systems. Thanks to PA insulation, it resists wear and delivers a long lifespan. A 12A current rating indicates that the unit handles large electrical loads to suit intense power distribution applications. By using female plug-in connectors, it mates easily with compatible cables and achieves fast connections.

• UL 94 V0 flammability rating signals protection against fire spread
• Tested by IEC 60068-2-6 standards to secure connections against vibrations
• 4kV surge voltage rating indicates resistance to electrical faults
• Short 7mm stripping length for low wire-preparation time

Datasheet 1762208

Line Drawing - 1762208
