1777989, Phoenix Contact 5.08mm Pitch 2 Way Pluggable Terminal Block, Plug, Plug-In, Screw Termination

8026372
Номер производителя: 1777989Производитель: Phoenix Contact
Цена за шт.
807.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

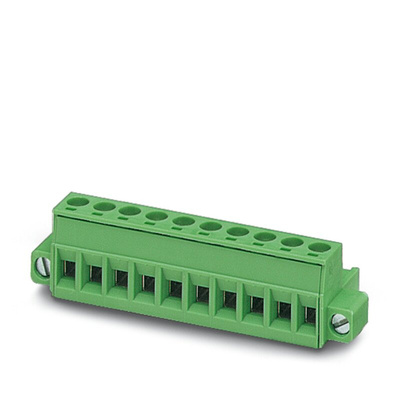

Phoenix Contact CLASSIC COMBICON MSTB 5.08mm PCB Terminal Blocks

A range of Classic COMBICON MSTB 5.08 mm pitch plug-in cable mount terminal block connectors from Phoenix Contact. The user-friendly PCB terminals feature a 0.2 mm² to 2.5 mm² screw connection that forms a standard plug-in system for 320 V (III/2).

CLASSIC COMBICON MSTB - Features and Benefits:

• Secure screw connection
• Well-known connection principle allows you to use worldwide
• Maximum contact force gives low temperature rise
• Long service life

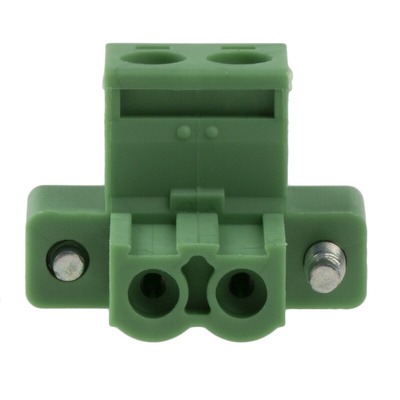

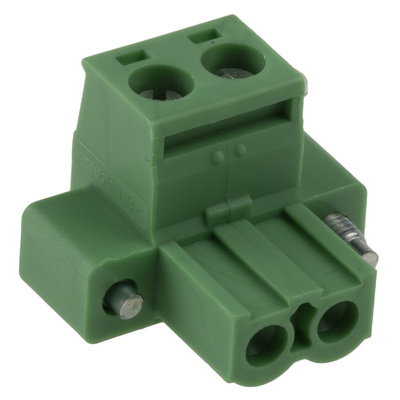

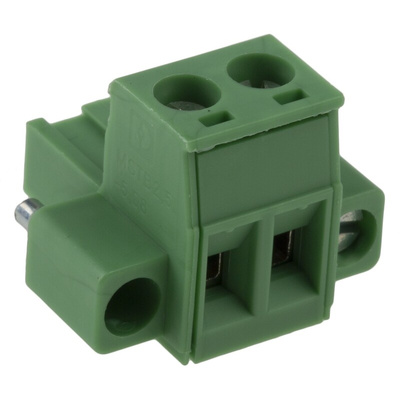

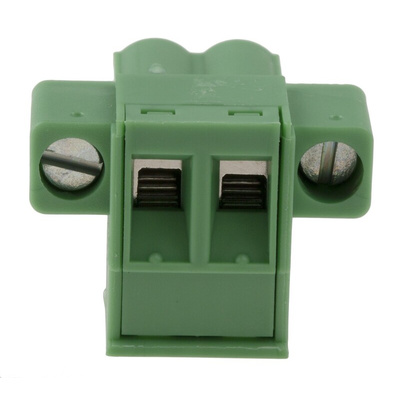

Phoenix Contact PCB Connector, 12A Current Rating, 5.08mm Pitch - MSTB 2.5/ 2-STF-5.08 - 1777989

Transmit electrical signals to your equipment using this PCB (printed circuit board) connector from Phoenix Contact. It lets you securely attach up to two conductors using screw termination to ensure a firm connection. As this unit is compatible with a broad range of wire sizes from 24 to 12AWG (American Wire Gauge), it's a versatile choice. The contacts are made from a tin-plated copper alloy material that's highly conductive and corrosion-resistant, so they deliver reliable performance.
Polyamide housing material provides insulation to protect you from electric shocks. It's also impact-resistant, so can withstand the demands of industrial environments. For enhanced electrical safety, the connector has a rated surge voltage of 4kV to withstand voltage spikes. Thanks to its tool-free, plug-in design, you can simply clip it onto the PCB of your machine for quick mounting.

• Light weight of 4.24g to reduce strain on the PCB
• IP20 (ingress protection) rating means it's finger-safe and protected against objects larger than 12mm in size
• UL94 V0 flammability rating means burning stops within 10 seconds for safety in the event of a fire

Техническая спецификация
pdfDatasheet 1777989
pdfLine Drawing - MSTB 2.5/-STF-5.08
Кол-во контактов:
2
Количество рядов:
1
Концевая заделка:
Винт
Материал:
Полиамид
Номинал тока:
12A
Номинальное напряжение:
320 В
Ориентация корпуса:
Прямой
Серия:
MSTB 2.5/2-STF-5.08
Тип монтажа:
Plug-In
Тип съемного клеммного блока:
Plug
Цвет:
Зеленый
Шаг:
5.08мм
