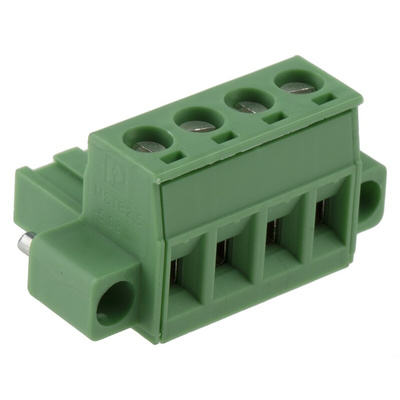

1778001, Phoenix Contact 5.08mm Pitch 4 Way Pluggable Terminal Block, Plug, Plug-In, Screw Termination

8026384
Номер производителя: 1778001Производитель: Phoenix Contact
Цена за шт.
1532.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact CLASSIC COMBICON MSTB 5.08mm PCB Terminal Blocks

A range of Classic COMBICON MSTB 5.08 mm pitch plug-in cable mount terminal block connectors from Phoenix Contact. The user-friendly PCB terminals feature a 0.2 mm² to 2.5 mm² screw connection that forms a standard plug-in system for 320 V (III/2).

CLASSIC COMBICON MSTB - Features and Benefits:

• Secure screw connection
• Well-known connection principle allows you to use worldwide
• Maximum contact force gives low temperature rise
• Long service life

Phoenix Contact PCB Terminal Block, 4 Way, 5.08mm Pitch - MSTB 2.5/ 4-STF-5.08 - 1778001

This PCB (printed circuit board) header from Phoenix Contact allows you to quickly and securely connect four contacts to your circuit. The connector system follows the classic Combicon template, meaning it can be used worldwide. The plug-in mounting style makes installation simple and saves you time when building your system.
Screw connections with tension sleeves give you the confidence your connections will remain in place. These connections also allow you to apply the maximum contact force, helping to ensure low temperature rise and prevent overheating. The contacts are copper alloy, hot-dip tin-plated to resist corrosion and ensure excellent conductivity. This helps to maintain signals at optimum quality. A polyamide housing provides effective electrical and temperature insulation. The 5.08mm pitch of the connectors is exactly double the standard breadboard pitch, making it compatible with other connectors.

• UL94 V0 flammability rating means it's self-extinguishing when exposed to flames
• Signature Phoenix Contact green colour for immediate identification in a busy setup
• Four contacts are arranged in a single row for easy use and space efficiency

Техническая спецификация
pdfDatasheet 1778001
Кол-во контактов:
4
Количество рядов:
1
Концевая заделка:
Винт
Материал:
Полиамид
Номинал тока:
12A
Номинальное напряжение:
320 В
Ориентация корпуса:
Прямой
Серия:
MSTB 2.5/ 4-STF-5.08
Тип монтажа:
Plug-In
Тип съемного клеммного блока:
Plug
Цвет:
Зеленый
Шаг:
5.08мм
