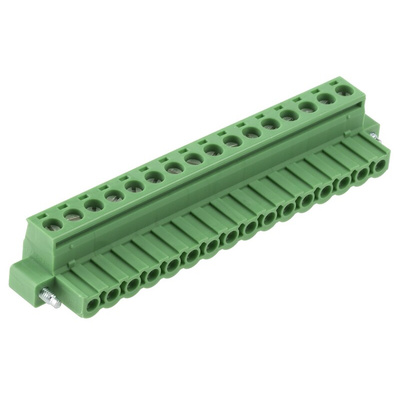

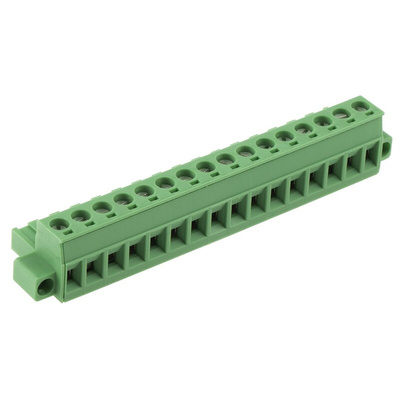

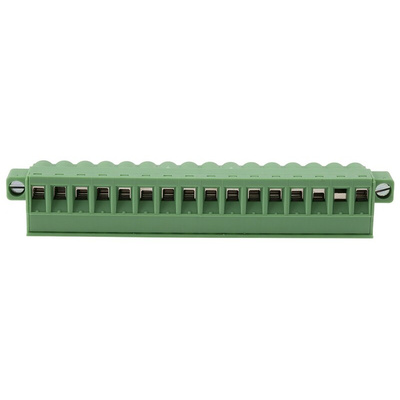

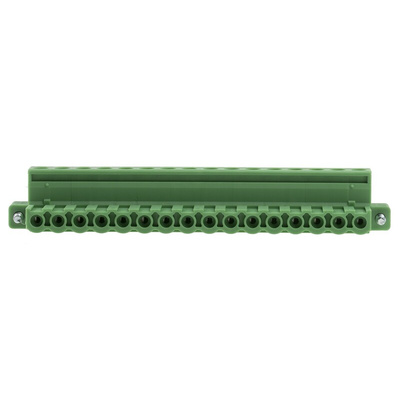

1778124, Phoenix Contact 5.08mm Pitch 16 Way Pluggable Terminal Block, Plug, Plug-In, Screw Termination

Phoenix Contact CLASSIC COMBICON MSTB 5.08mm PCB Terminal Blocks

A range of Classic COMBICON MSTB 5.08 mm pitch plug-in cable mount terminal block connectors from Phoenix Contact. The user-friendly PCB terminals feature a 0.2 mm² to 2.5 mm² screw connection that forms a standard plug-in system for 320 V (III/2).

CLASSIC COMBICON MSTB - Features and Benefits:

• Secure screw connection
• Well-known connection principle allows you to use worldwide
• Maximum contact force gives low temperature rise
• Long service life

Phoenix Contact PCB Terminal Block, 12A Current Rating, Plug-In Mounting - MSTB 2,5/16-STF-5,08 - 1778124

Quickly connect conductors to your circuit board with this PCB terminal block from Phoenix Contact. Thanks to its pre-assembled cable harness, connectors are easy to insert and remove, so you benefit from rapid wiring and commissioning of your system.
The unit's rated surge voltage of 4kV protects it against overcurrent, so there's minimal chance of electrical faults damaging your system. Its housing is made from nylon to offer insulation and protection against electric shocks. As nylon doesn't corrode, this is a reliable option for use in humid settings.
A mechanical durability of 25 cycles means you can attach and remove conductors multiple times. You'll find a terminal block like this used in machine-building applications and electrical installations.

Features & Benefits

• Suitable for automated, semi-automated and manual wiring to best suit your application's needs
• Copper contacts ensure superior electrical conductivity for power efficiency
• Conforms to UL94 V0 flammability requirements, so it's flame-retardant and won't catch alight in the event of a fire
• Meets IEC 61984 safety standards for connectors with rated voltages between 50 and 1,000V AC
• IP20-rated housing is finger-safe and protected against wires and tools larger than 12mm

Datasheet 1778124
