1681910, Phoenix Contact Straight Female 3 way M8 to Straight Male 3 way M8 Sensor Actuator Cable, 600mm, Кабельная сборка

Sensor/Actuator 3 Way Cable Assemblies, M8 to M8, PUR Cable

M8 to M8 connector cable assemblies, 3 way in a variety of halogen-free PUR cable lengths, with angled or straight connector versions. A-coded connectors with an IP67 rating once mated.

100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II

Note

Stock nos. 802-6924 & 802-6928 have an LED.

Approvals

UL, cUL, cULus, GOST.

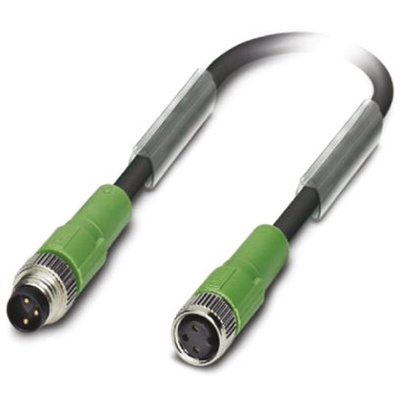

Phoenix Contact 3-Core Straight Plug Cable Assembly, M8 to M8, 600mm - SAC-3P-M 8MS/ 0,6-PUR/M 8FS - 1681910

This cable assembly from Phoenix Contact is used to connect sensors and actuators for reliable signal transmission. This component has straight male (plug) and female (socket) contacts at both ends of a 600mm cable for flexible connections. Its M8 lock nut is simple to fit for a secure attachment. The cable's sheath is made of polyurethane (PUR), which offers high impact and chemical resistance for use in harsh environments.
The cable has a slip-and-lock design with a 3-pin screw that provides a tight seal. This protects the electrical connection from dust and moisture while maintaining reliable data transmission. The TPU (thermoplastic polyurethane) grips make it simple to hold onto for ease of insertion and removal.
This cable has a category II surge voltage rating, which means it can withstand voltage spikes of up to 2500V for a high degree of electrical safety. You'll find this type of assembly widely used in the automation industry.

Features & Benefits

• Broad operating temperature range of -25°C to +90°C for use in a variety of settings
• Halogen-free material to prevent toxic fumes in the event of a fire
• Saltwater resistance for use in demanding offshore environments

Sensor/Actuator cable - SAC-3P-M 8MS/ 0,6-PUR/M 8FS - 1681910
