1681907, Phoenix Contact Straight Female 3 way M8 to Straight Male 3 way M8 Sensor Actuator Cable, 300mm, Кабельная сборка

Sensor/Actuator 3 Way Cable Assemblies, M8 to M8, PUR Cable

M8 to M8 connector cable assemblies, 3 way in a variety of halogen-free PUR cable lengths, with angled or straight connector versions. A-coded connectors with an IP67 rating once mated.

100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II

Note

Stock nos. 802-6924 & 802-6928 have an LED.

Approvals

UL, cUL, cULus, GOST.

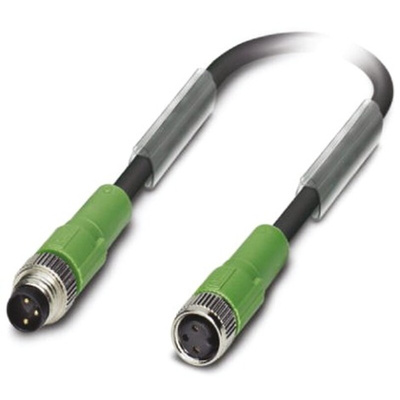

Phoenix Contact 3-Core Cable Assembly, M8 to M8, 300mm - SAC-3P-M 8MS/ 0,3-PUR/M 8FS - 1681907

Use this Phoenix Contact cable assembly to establish communication between control systems and sensors in industrial electronics and automation facilities. This component has one male M8 connector and one female M8 connector on a 300mm cable that can transmit both power and data at the same time. The cable's sheath is made from a wear-resistant polyurethane (PUR) material, which means you can use it safely even in harsh environments.
This cable's contacts are made of highly conductive copper and tin for a reliable connection. The thermoplastic polyurethane (TPU) covering on each end provides insulation to protect against electric shock while also allowing you to have a firm grip on the cable when using it.
The UL94 HB (Underwriters' Laboratories) rating for fire safety means the cable burns slowly on a horizontal component. You can use this part in production assembly lines as well as in prototyping laboratories.

Features & Benefits

• Straight body orientation for ease of installation
• Twisted conductor wires to prevent electromagnetic interference (EMI) for noiseless transmission
• Insulation resistance of 100MΩ for improved electrical safety

Sensor/Actuator cable - SAC-3P-M 8MS/ 0,3-PUR/M 8FS - 1681907
