1681936, Phoenix Contact Straight Female 3 way M8 to Straight Male 3 way M8 Sensor Actuator Cable, 3m, Кабельная сборка

Sensor/Actuator 3 Way Cable Assemblies, M8 to M8, PUR Cable

M8 to M8 connector cable assemblies, 3 way in a variety of halogen-free PUR cable lengths, with angled or straight connector versions. A-coded connectors with an IP67 rating once mated.

100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II

Note

Stock nos. 802-6924 & 802-6928 have an LED.

Approvals

UL, cUL, cULus, GOST.

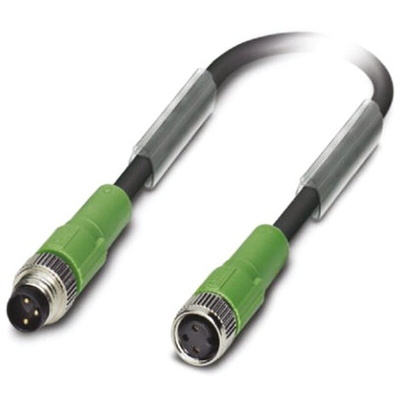

Phoenix Contact Cable Assembly, M8, 3m Length - SAC-3P-M 8MS/ 3 0-PUR/M 8FS - 1681936

Use this cable assembly from Phoenix Contact to connect a sensor or actuator to a power source. It bundles together and protects sensitive electrical wiring to prevent shorting and damage to equipment. The standard M8 connector has a female socket on one end and a male plug on the other.
A polyurethane (PUR) cable provides high resistance to abrasion, oil and air for excellent protection to the cable's inner wiring. This makes it well suited to harsh industrial environments, while retaining good electrical insulation properties for enhanced levels of safety. The polyurethane is also halogen-free, so it won't emit any toxic gases in the event of a fire.
When fully mated, this cable assembly is IP67 (ingress protection) rated, which means it makes a dust-tight connection that's also fully protected from water jets. It's compatible with a wire size of 24AWG (American Wire Gauge).

• Cable length of 3m for versatile installation
• Halogen-free material for workplace safety
• Straight body orientation for simple connections
• Resistant to saltwater, for use in demanding industrial environments

Sensor/Actuator cable - SAC-3P-M 8MS/ 3,0-PUR/M 8FS - 1681936
