1682744, Phoenix Contact Straight Male 5 way M12 to Unterminated Sensor Actuator Cable, 3m, Кабельная сборка

Sensor/Actuator 5 Way Cable Assemblies, Free End to M12, PUR Cable

Free-end to M12 connector cable assemblies, 5 way in a variety of cable lengths, with angled or straight connector versions. A-coded connectors with an IP67 rating once mated.

100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II
PUR halogen-free black shielded cable

Approvals

UL, cUL, cULus, GOST.

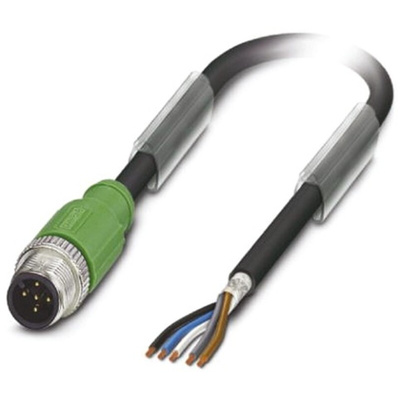

Phoenix Contact Shielded Cable Assembly, 3m, 22AWG - SAC-5P-M12MS/ 3,0-PUR SH - 1682744

Safely plug multiple wires into your electrical system using this cable assembly from Phoenix Contact. Its 3m length means you can use it to connect components across a large distance. The cable housing is made from a halogen-free polyurethane (PUR) material, so it's highly durable and won't release toxic fumes in the event of a fire.
The M12 connector is encased in Phoenix's Contact's signature green jacket for ease of identification in a colour-coded set-up. The second end is unterminated, so you can easily customise the cable assembly according to your needs.
This cable assembly has IP65 (ingress protection) and IP67 ratings, meaning that it's shielded against dust and highly resistant to water. Thanks to its UL94 HB (Underwriters' Laboratories) rating, it's self-extinguishing when exposed to flames for greater workplace safety. Use this cable assembly for complex electrical connections in commercial applications.

Features & Benefits

• Broad operating temperature range of -25°C to +90°C for use in demanding environments
• Cable insulation of 0.21mm prevents overheating and protects against electrical hazards
• Optical shield covering of 80% provides comprehensive protection against EMI (electromagnetic interference) for reliable transmission

Sensor/Actuator cable - SAC-5P-M12MS/ 3,0-PUR SH - 1682744
