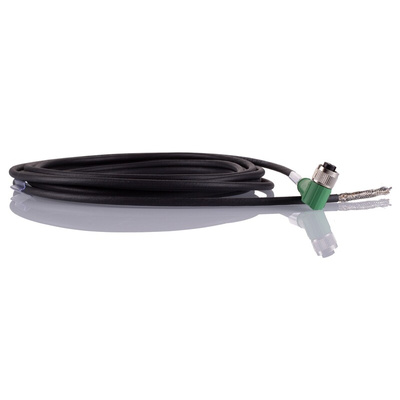

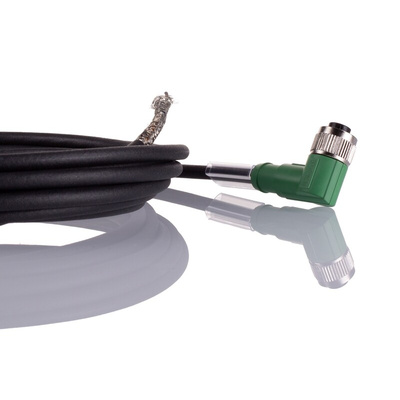

1682980, Phoenix Contact Right Angle Female 5 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Phoenix Contact Sensor Actuator Cable, 4A Current Rating, 5m Length - SAC-5P- 5,0-PUR/M12FR SH - 1682980

Transfer data signals between devices in your work environment using this sensor actuator cable from Phoenix Contact. It features a standard M12 connector on one end and is unterminated on the other end, so you can customise it according to the needs of your setup. The cable has a tinned copper braided shield for protection against EMI, meaning you can be sure of noiseless signal transmission.
The cable is 5 metres long, so it lets you make long-distance connections in larger workplaces. A durable PUR sheath provides resistance to the impacts, moisture and oil you'd expect in harsh environments. An IP67 rating indicates this is a dust-proof option that's protected against immersion in 1m of water for up to 30 minutes. You can use a cable like this one anywhere from assembly plants to automation systems.

Features & Benefits

• Wide operating temperature range between -25°C and +90°C for reliability in demanding environments
• Current rating of 4A for use in low-power applications
• Flammability rating of UL94 HB means it's self-extinguishing for safety in the event of a fire

Sensor/Actuator cable - SAC-5P- 5,0-PUR/M12FR SH - 1682980

Line Drawing - 1682980

Instruction Sheet - Length Tolerances
