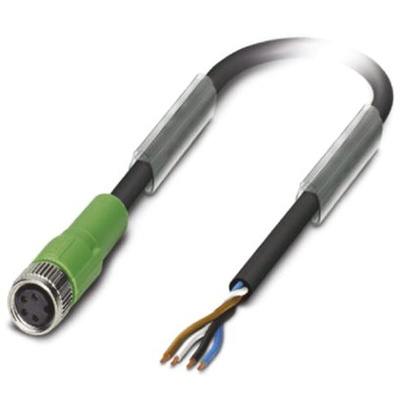

1683484, Phoenix Contact Straight Female 4 way M8 to Unterminated Sensor Actuator Cable, 10m, Кабельная сборка

Sensor/Actuator 4 Way Cable Assemblies, M8 to Free End, PUR Cable

M8 to free-end connector cable assemblies, 4 way in a variety of halogen-free PUR cable lengths, with angled or straight connector versions. A-coded connectors with an IP67 rating once mated.

100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II

Approvals

UL, cUL, cULus, GOST.

Phoenix Contact Sensor Actuator Cable, 10m Length, 4 Cores - SAC-4P-10.0-PUR/M 8FS Series - 1683484

Use this sensor actuator cable from Phoenix Contact to connect your actuators to their control devices. It's terminated at one end with a female M8 connector and unterminated at the other end for flexible installation. The unit's twisted wires reduce EMI in your applications, so you can use it in environments where electromagnetic fields are likely. Thanks to its PUR halogen-free jacket, this cable won't contribute to a workplace fire and won't release harmful substances if burned.
A flexible unshielded design means the cable can be installed around bends and is suitable for use in applications involving moving machine parts. Bare copper litz wire is used as the conductor material – its low resistance to current flow makes it ideal for automated applications.

• 10m cable length for making long-range connections
• Socket has temperature tolerance between -25°C and +90°C, so is suitable for use in harsh environments
• 125V AC voltage for use in low-powered to medium-powered devices
• IP67 rating indicates that it's dust-proof and resistant to immersion in 1m of water for 30 minutes

Sensor/Actuator cable - SAC-4P-10,0-PUR/M 8FS - 1683484

Instruction Sheet - Sensor & Actuator Cables
