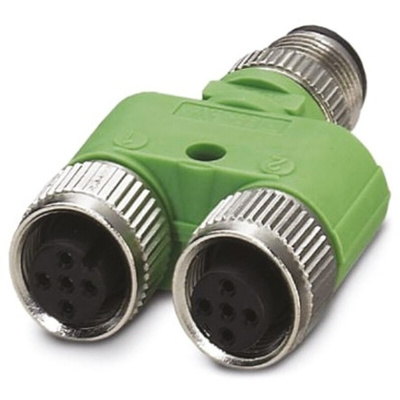

1683468, Phoenix Contact 5 Pole M12 Socket to 5 Pole M12 Socket Connector

8026993
Номер производителя: 1683468Производитель: Phoenix Contact
Цена за шт.
15463.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

M12 Y Connector

Phoenix contact M12 Speedcon connectors, these 3 ways Y or T distribution connector are IP67 rated once mated and have a PG9 or M12 fastening thread, suitable for many applications that demand a robust multiple connections.

Phoenix Contact Y-Adapter, M12, 60V - SAC-5P-M12Y/2XM12FS VP - 1683468

Use this Y-adapter from Phoenix Contact to conveniently integrate a new actuator into your Ethernet system. The well-protected device is suitable for demanding industrial environments and offers reliable power transfer. It's compatible with both moulded and unshielded connectors.
QUICKON technology provides fast field termination with M12 connectors for rapid assembly. Strong metal knurls made from die-cast zinc handle excessive wear and offer superior protection against corrosion. Insulation displacement contacts ensure an air-tight seal without the need for splicing or preparing cables prior to termination.
The fast-locking system on the adaptor is particularly useful in tight spaces and applications with high cabling density, thanks to its tool-free connection system. Choose this shock-resistant and vibration-resistant connector for harsh operating conditions, such as those found in the rail industry.

Features & Benefits

• Environmentally-friendly product as it contains minimal amounts of any hazardous substances
• Wide operating temperature range of -25°C to +90°C for compatibility with a broad range of challenging environments
• IP67 (ingress protection) rating indicates full protection against dust and water when mated
• Allows you to establish flying leads in the field for added convenience
• Compact and space-saving size with dimensions of 50.1 (length) x 32.8 (width) x 14.8mm (height)

Техническая спецификация
pdfY distributor - SAC-5P-M12Y/2XM12FS VP - 1683468
Конец 1:
5 Pin Female M12
Конец 1 Вид:
Female
Конец 1 Количество контактов:
5
Конец 1 Размер:
M12
Конец 2:
5 Pin Male M12
Конец 2 Вид:
Female
Конец 2 Количество контактов:
5
Конец 2 Размер:
M12
Материал контактов:
CuZn
Номинал тока:
4A
Номинальное напряжение:
60 В
Оболочка:
Никель
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото над никелем
Рабочая температура - максимальная:
+90°C
Рабочая температура - минимальная:
-25°C
Серия:
SAC
Степень защиты IP:
IP65, IP67
