1693319, Phoenix Contact Straight Female 3 way M8 to Straight Male 3 way M8 Sensor Actuator Cable, 5m, Кабельная сборка

Sensor/Actuator 3 Way Cable Assemblies, M8 to M8, PUR Cable

M8 to M8 connector cable assemblies, 3 way in a variety of halogen-free PUR cable lengths, with angled or straight connector versions. A-coded connectors with an IP67 rating once mated.

100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II

Note

Stock nos. 802-6924 & 802-6928 have an LED.

Approvals

UL, cUL, cULus, GOST.

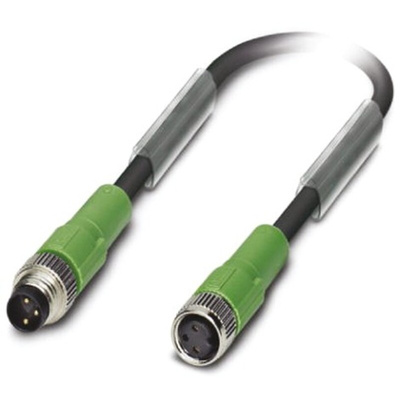

Phoenix Contact 3-Core Straight Plug Cable Assembly, M8 to M8, 5m - SAC-3P-M 8MS/ 5,0-PUR/M 8FS - 1693319

This cable assembly from Phoenix Contact is used to effectively link sensors and their control units for optimal signal transmission. It features a female M8 socket on one end and a male M8 plug on the other end of a 5m cable for simple connections between compatible devices. This component's contacts are made of copper and tin for optimal conductivity. The nickel and silver plating protects the contacts against corrosion for more reliable performance.
The polyurethane (PUR) sheath material protects the cable's inner wiring against impact as well as oils and other substances. This makes it suitable for use in harsh industrial environments. For greater safety, it's also halogen-free, so it won't emit any toxic fumes in the event of a fire.
Thanks to its IP67 (ingress protection) rating, this cable is protected against dust and temporary submersion in water. This makes it a robust choice for use in applications such as robotics and automation.

Features & Benefits

• Straight body orientation for ease of installation
• UL94 HB (Underwriters' Laboratories) rating means it's self-extinguishing in the event of a fire
• Wide operating temperature range of -25°C to +90°C for use in harsh environments

Sensor/Actuator cable - SAC-3P-M 8MS/ 5,0-PUR/M 8FS - 1693319
