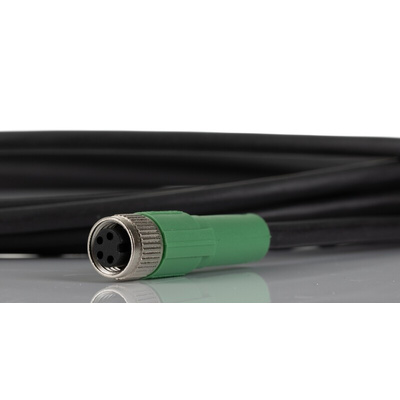

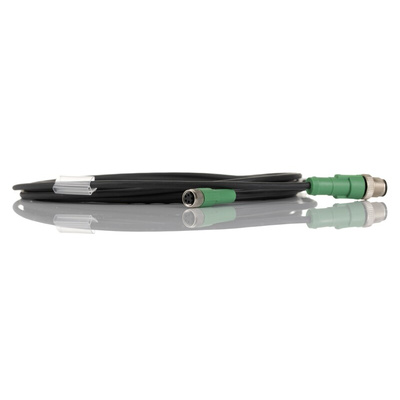

1694936, Phoenix Contact Straight Female 4 way M8 to Straight Male 4 way M12 Sensor Actuator Cable, 3m, Кабельная сборка

Phoenix Contact Sensor Actuator Cable, Insulated, 24AWG - SAC-4P-M12MS/3,0-PUR/M 8FS - 1694936

Bridge the gap between sensors and actuators in your industrial environment using this sensor actuator cable from Phoenix Contact. With an M8 connector on one end leading to an M12 connector on the other, this is the plug you need to transmit data and signals between your machines. Robust copper-alloy contacts are on hand to deliver stable conductivity. To add extra oomph to these contacts, they're coated in durable nickel-gold that resists corrosion.
As the cable's tested to withstand ≥100 insertion and withdrawal cycles, you can plug and unplug it multiple times without wearing the contacts out. Keeping things cool is a robust PP conductor insulation, which helps to prevent the wires from overheating. Thanks to the 4,000,000 bending cycles, flexing this cable around tight corners won't be a stretch for you. As it's 3 metres long, this is a versatile choice for making easy connections between items of equipment set apart from each other.

Features & Benefits

• Flammability rating of UL 94-HB helps slow down the rate of burning
• PUR outer jacket resists wear and tear
• Resistant to acids, solvents and microbes to withstand harsh environments

Sensor/Actuator cable - SAC-4P-M12MS/3,0-PUR/M 8FS - 1694936

Instruction Sheet - SAC Series
