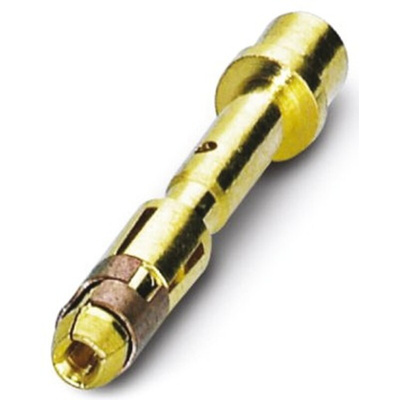

1605566, Phoenix Contact Female Crimp Crimp Contact, Contact Size 1mm, Wire Size 1.5 mm²

Connecting pins for bus circular connector, IP67

Phoenix Contact range of P30 connector crimp connectors.

Approvals

UL

Phoenix Contact Female Crimp Contact, 1mm Contact Size, 1.5mm² CSA - SF-6FS2000 - 1605566

When you need to effectively transmit signals through your circular connectors, choose this crimp contact from Phoenix Contact. It provides a channel for stranded conductors to easily link with Pluscon adapters. You can use manual compression with a crimp tool to join cables with this unit, so there's no need for soldering. The contact is made of copper and zinc material that has an excellent strength-to-weight ratio, which means it withstands impact and performs reliably even in harsh environments.
Nickel plating and gold coating provide a shield against corrosion, so you can be sure this contact will stand the test of time. Its contact size of 1mm makes it a good fit for setups with limited space. You'll find it commonly used in aerospace and military applications.

• Can accommodate cables with cross-sectional areas ranging from 0.5 to 1.5mm² for versatility
• Non-combustible to prevent the spread of flames in a fire
• Light weight of 0.279g will minimise stress on your system
• Pack contains 100 crimp contacts, providing an ample supply for numerous jobs

Datasheet 1605566
