1658435, Phoenix Contact, Male Cat5 RJ45 Connector, Разъем

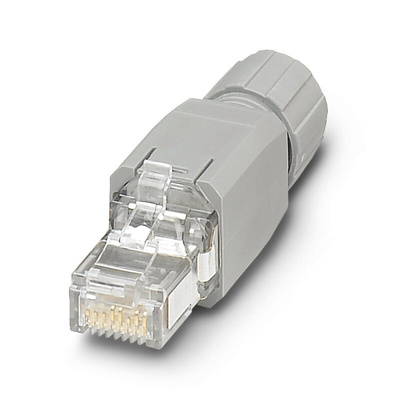

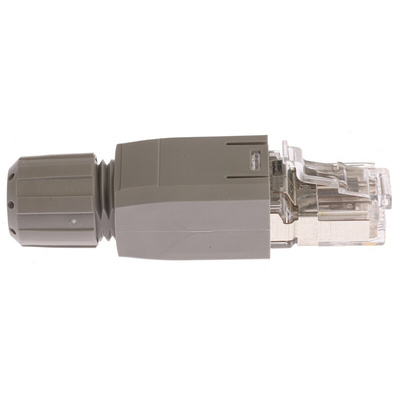

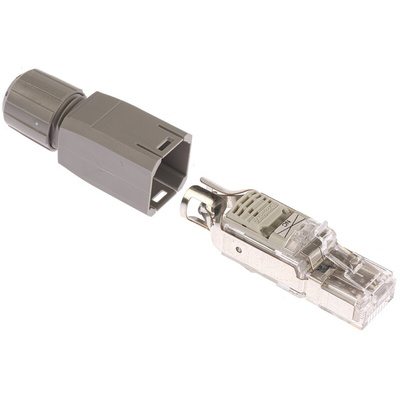

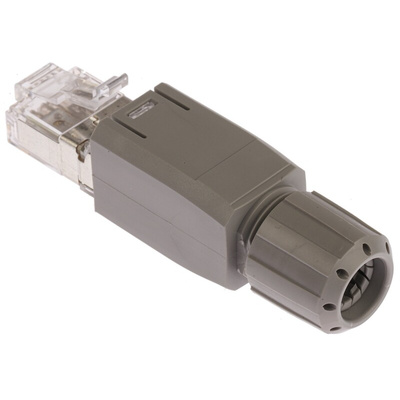

Phoenix Contact IP20 RJ45 Plug with QUICKON Connection

From Phoenix Contact the VS-PN RJ45 Cat 5 connector designed for cable mounting. Featuring ’QUICKON’ fast connection technology the industrial Ethernet connector is extremely easy to assemble. No specialist tooling or crimpers required, making this connector ideal for rapid field installations.

With a tough PA housing and 360˚ shielding the Phoenix Contact 1658435 RJ45 connector is perfect for use in environments where EMI interference could be a concern.

What is QUICKON?

Connectors with QUICKON technology are equipped with IDC (Insulation Displacement Connection) contacts. Unprepared wires and cables with insulation can be terminated quickly providing a gas-tight connection. This dramatically reduces the connection time by at last 60% saving valuable time and money.

Features and Benefits

• Robust and reliable


• Locking clips for extra safety


• Straight cable outlet


• Easy to terminate with QUICKON fast connection


• Simple connectivity


• Non-crimp, no tooling required


• 100 Mbps data transmission


• CAT5 to IEC 11801:2002


• UL 94 V0 flammability rating


• 22 AWG wire size


• -20 ˚C to +70 ˚C operating temperature range

Applications

RJ45 connectors are used for connecting Ethernet cables to equipment in networking or telecommunication applications. The plugs can be terminated to shielded cabling to make network cables or patch cables. Some of the most common are

• Production lines


• Process automation


• Hubs and switches


• Routers


• Networks

Environment

With an IP20 rating, this connector is not moisture-proof or waterproof. It should not be exposed to the elements or used in harsh environments.
