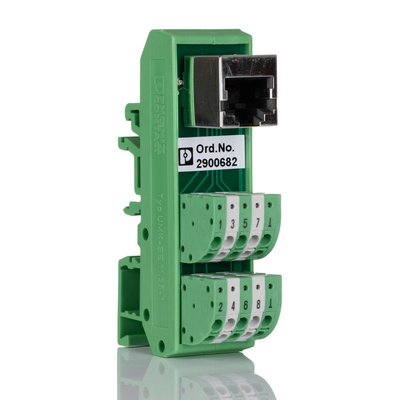

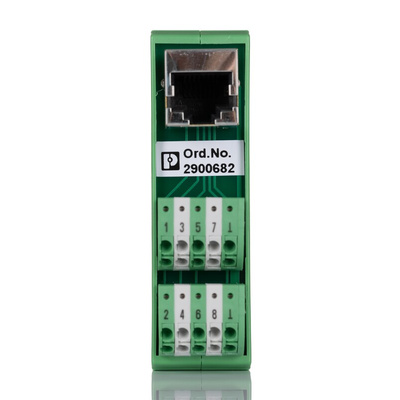

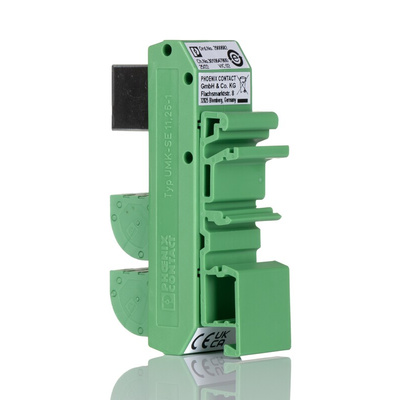

2900682, Phoenix Contact 8-Contact Female Interface Module, RJ45 Connector, DIN Rail Mount, 4A, Модуль

Phoenix Contact Interface Module, Straight Body Orientation, 48V AC/DC Operating Voltage - UMK-RJ45/S/8PTDA - 2900682

Need a go-between to keep your control units and machinery on speaking terms? Boost your system with this interface module from Phoenix Contact. It has eight contacts to let you easily link up multiple devices to your cabinet. An RJ45 Ethernet connector supports links with your wider network, for crystal-clear signals.
This interface module fits onto a standard 35mm DIN rail for quick and easy integration into your system. The spring cage connection locks on to conductors and holds fast, even when faced with vibration or jostling. Each endpoint is numbered for easy identification during repair or maintenance. Interface modules like this one are widely used in manufacturing applications.

Features & Benefits

• Tolerates demanding conditions, thanks to a wide operating temperature range of -20°C to +50°C
• Withstands 0.5kV surges to keep your system up and running through fault conditions
• Accepts wire sizes between 24 and 16,AWG so it's a versatile choice
• Compact dimensions of 22.5 (W) x 43 (L) x 77mm (H) mean it fits into tight setups
• Bright green colour makes it easy to spot in a busy system

Datasheet

Line Drawing - 2900682
