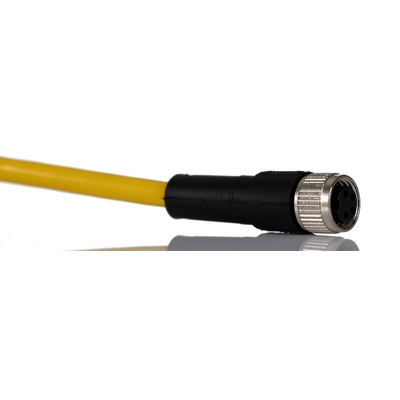

1406239, Phoenix Contact Straight Female 4 way M8 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Sensor/Actuator 4 Way Cable Assemblies, M8 Male or Female, Free End

M8 to free end connector cable assemblies, 4 way, angled or straight connector versions available with various lengths of PVC shielded yellow cable. A-coded connectors with a rating of 4A 30V, these M8 connectors are IP67 rated once mated.

100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II

Phoenix Contact Sensor Actuator Cable, 24AWG, UV-Resistant - SAC-4P- 5,0-542/M8 FS BK - 1406239

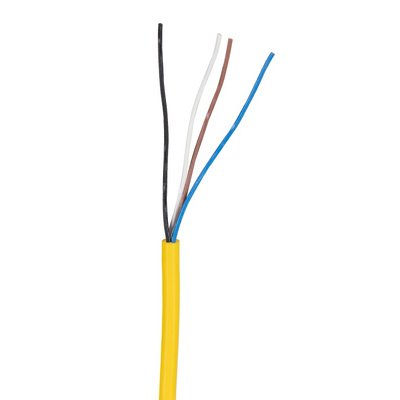

Need a reliable way to get your devices on speaking terms? Take the lead with this sensor actuator cable from Phoenix Contact. It has one M8 connector and a pre-stripped unterminated end so you can easily adapt it to suit your setup. A PVC sheath protects against chemicals and oil, making this a hardwearing option for contaminated settings.
The cable's slim cross-sectional area of 0.25mm² ensures it's flexible enough to be easily routed around tight corners and into cramped spaces. Its copper-tin contacts are highly conductive to minimise signal loss. To tolerate challenging conditions, it has a broad operating temperature range between -25°C and +90°C.

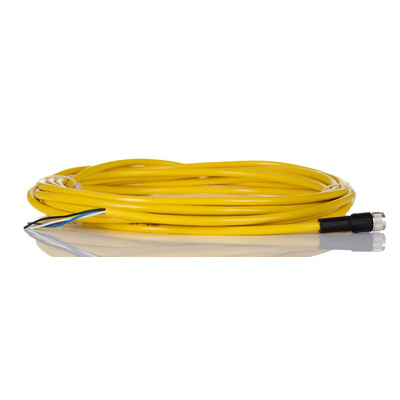

At 5m long, this cable has plenty of reach across large areas. An IP68 rating means it's dust-tight and resistant to water submersion, so it's suitable for outdoor environments. You can be sure it's with you for the long haul, as it tolerates up to 100 mating cycles.

Features & Benefits

• Yellow sheath makes it easy to identify in busy systems
• Low weight of 135.3g means it's convenient to handle and transport
• M8 connector achieves a dependable connection in high-vibration environments
• Copper-tin contacts are resistant to corrosion in humid settings

1406239 Datasheet
