1406242, Phoenix Contact Right Angle Female 4 way M8 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Sensor/Actuator 4 Way Cable Assemblies, M8 Male or Female, Free End

M8 to free end connector cable assemblies, 4 way, angled or straight connector versions available with various lengths of PVC shielded yellow cable. A-coded connectors with a rating of 4A 30V, these M8 connectors are IP67 rated once mated.

100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II

Phoenix Contact Sensor Actuator Cable, 5m Length, 4 Cores - SAC-4P- 5.0-542/M8 FR BK - 1406242

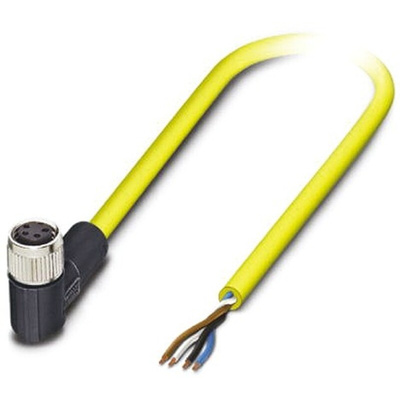

Looking for a reliable way to transmit data from your equipment to sensors, switches and transducers? This sensor actuator cable from Phoenix Contact features a right-angled head on one end, so you can neatly integrate it into your existing system. The tinned-copper contact material prevents corrosion and oxidation while offering dependable conductivity. At the free end, the cores are colour-coded for safe and easy installation.
Once mated, the connection is rated IP65, IP67 and IP69, meaning it's dust-tight, waterproof against low to high-pressure jets and can be submerged in up to 1m of water for 30 minutes. You can use this wire in harsh conditions thanks to a wide operating temperature range between -25°C and +90°C. The PVC sheath is flame retardant and resistant to oils, acids and alkalis, making this an ideal solution for manufacturing and automation applications.

• HB UL 94 flammability rating indicates slows burning along the cable sheath to protect against electrical fires
• UV resistant for safe use in outdoor systems
• 5m lead length connects equipment to sensors or switches across larger workspaces

Sensor/Actuator cable - SAC-4P- 5,0-542/M8 FR BK
