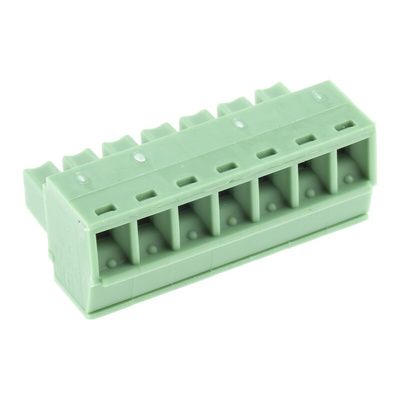

Phoenix Contact MINI COMBICON MC 3.81mm Pitch Terminal Block Plug Connectors
Phoenix brings you a series of MC PCB terminal connectors. Featuring a 3.81mm pitch and a well-known name, these connectors are brilliant. They allow a wire from 0.14mm² up to 1.5mm² with a simple screw connection with a tension sleeve and horizontal wire entry. Each connector can have a maximum of two connections with a rated current of 8A.
These terminal blocks allow you to transfer data, signals and power directly to your PCB safely. They make ideal use as permanent solution however can be used in temporary circuitry.
MINI COMBICON MC 3.81mm Features and Benefits:
•Maximum reliability due to high quality materials
•3.81mm pitch
•Screw connection with termination device to help prevent loosening of wire in high vibration
•Copper alloy contact material with tin plated terminal points
•-40°c to +70°c operating temperatures
•Height of only 8mm above the board for a small compact fit
These connectors use a M2 slotted (L) screw. If you need a screwdriver, check out “125-3078”
Other accessories:
•Marker cards – 648-5508
•Cable housing – 742-7409
MC 1,5/ 7-ST-3,81
