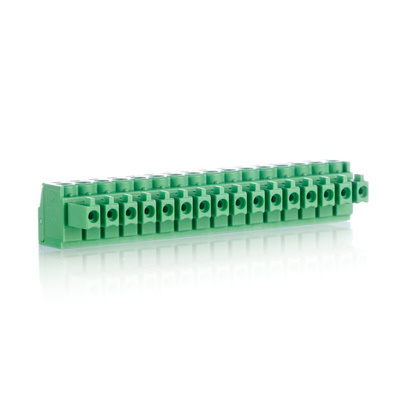

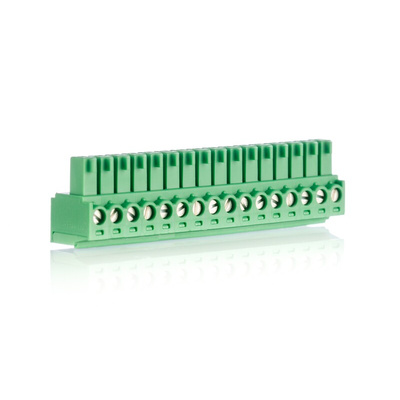

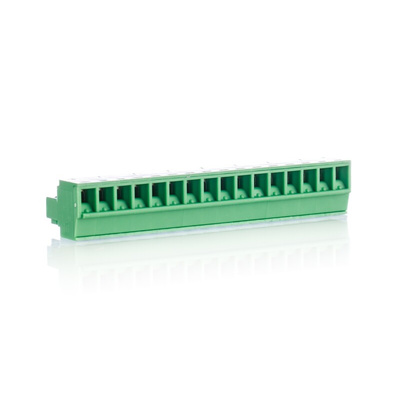

1803714, Phoenix Contact 3.81mm Pitch 16 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

8028790
Номер производителя: 1803714Производитель: Phoenix Contact
Цена за шт.
2187.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact MINI COMBICON MC 3.81mm Pitch Terminal Block Plug Connectors

Phoenix brings you a series of MC PCB terminal connectors. Featuring a 3.81mm pitch and a well-known name, these connectors are brilliant. They allow a wire from 0.14mm² up to 1.5mm² with a simple screw connection with a tension sleeve and horizontal wire entry. Each connector can have a maximum of two connections with a rated current of 8A.

These terminal blocks allow you to transfer data, signals and power directly to your PCB safely. They make ideal use as permanent solution however can be used in temporary circuitry.

MINI COMBICON MC 3.81mm Features and Benefits:

•Maximum reliability due to high quality materials
•3.81mm pitch
•Screw connection with termination device to help prevent loosening of wire in high vibration
•Copper alloy contact material with tin plated terminal points
•-40°c to +70°c operating temperatures
•Height of only 8mm above the board for a small compact fit

These connectors use a M2 slotted (L) screw. If you need a screwdriver, check out “125-3078”

Other accessories:
•Marker cards – 648-5508
•Cable housing – 742-7409

Phoenix Contact PCB Terminal Block, 16 Positions, 3.81mm Pitch - MC 1.5/16-ST-3.81 - 1803714

This Phoenix Contact PCB terminal block securely completes power and data connections to your circuit board. Its female connectors have screw terminals with integrated tension sleeves to protect your wiring against movement and ensure reliable operation. By supporting up to 16 conductors, the unit lets you make multiple couplings with one component to keep your cabling organised. A simple plug-in connection method minimises wiring time for quick swapping between hardware.
With its conductive tin-plated copper alloy contacts, this terminal block forms effective electrical connections for efficient appliance communication. The unit's low height of 11.1mm allows you to install it in narrow areas of your system. Support for wire cross-sections between 0.14mm² and 1.5mm² ensures wide compatibility with standard connectors for versatility. As it has a pitch of 3.81mm, the block fits easily onto crowded circuit boards.

Features & Benefits

• Tested according to IEC 60999-1 standards to ensure secure connections without risk of conductor damage
• Designed with contact polarisation and coding in compliance with IEC 60512-13-5 requirements to eliminate the risk of incorrect connections
• Sold in packs of 50 units for convenient stocking
• Hard-wearing PA housing ensures effective impact protection

Техническая спецификация
pdfPlug - MC 1,5/16-ST-3,81
pdfLine Drawing - 1803714
Кол-во контактов:
16
Количество рядов:
1
Концевая заделка:
Винт
Материал:
Полиамид
Номинал тока:
8A
Номинальное напряжение:
160 В
Ориентация корпуса:
Прямой
Серия:
MC 1.5/16-ST-3.81
Тип монтажа:
Кабельное крепление
Тип съемного клеммного блока:
Plug
Цвет:
Зеленый
Шаг:
3.81мм
