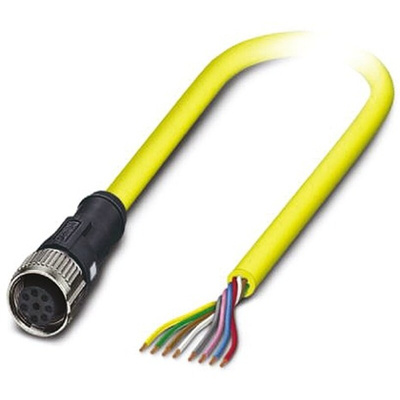

1406105, Phoenix Contact Straight Female 8 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

SAC-8P Sensor/actuator cable - 8 Positions

These SAC-8P open-ended cables from Phoenix Contact are M12 SPEEDCON connectors with an unterminated end. The M12 connection features Phoenix Contact effortless SPEEDCON technology that allows you to connect and create a secure connection with just half a turn of the metal knurl, saving up to 90% of installation time compared to a normal M connector. Not to mention, the SC-8P series come in various lengths ranging from 1.5m up to a maximum length of 10m. The cable is built from a durable and strong PVC yellow with a twist of 8 wires around filler to the core, with a conductor of tin-played copper litz wires.

M12 connectors are typically used in industrial applications such as factory, machinery, automation, industrial ethernet and Fieldbus.

Features and benefits:

• Back by an IP68 rating on the M12 connector once mated


• Rated at a current of 2A or a voltage of 30 V AC/DC


• Standard A-coded


• Open-ended allows you to connect your own connection for numerous possibilities


• Surge voltage category II


• SPEEDCON technology allows for an easy mate and secure locking for a good connection over the long term

The open-ended section of the cable can be connected to Phoenix Contact's range of SACC connectors as long as they're 8-position.

Approvals

cULus Listed

Phoenix Contact Open-Ended Cable Assembly, 2m, 24AWG - SAC-8P- 2.0-542/ FS SCO BK - 1406105

Guarantee secure connections from an electrical source to an electrical panel using this open-ended cable assembly from Phoenix Contact. It has one M12 connection that enables the swift transfer of data and electrical current. There's also an unterminated end with eight wires for versatile connections.
The assembly is housed in highly durable PVC (polyvinyl chloride) material that insulates the internal wiring and provides good impact and wear resistance. It's suitable for use in harsh environments as it's resistant to UV (ultraviolet) rays.
As it has a cable length of 2m, you can use this cable for flexible connections between devices. Use this cable assembly for a speedy connection in industrial settings or as a transmission module between various communication devices.

Features & Benefits

• Innovative SPEEDCON technology enables quick and simple installation
• IP65 (ingress protection), IP67 and IP68 ratings mean it's protected against dust and moisture
• Can withstand 100 insertion and withdrawal cycles for long-lasting performance
• Broad operating temperature range of -25°C to +90°C for use in a variety of demanding environments

Sensor/Actuator cable - SAC-8P- 2,0-542/ FS SCO BK
