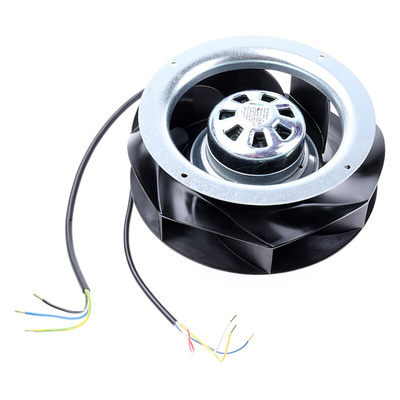

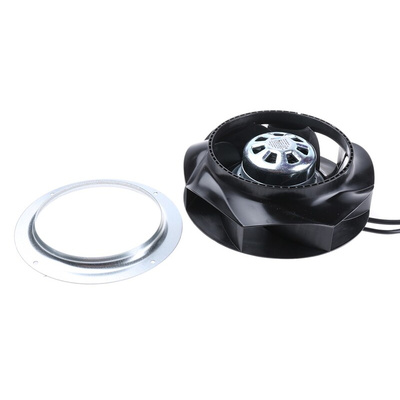

R3G190-RD45-03, ebm-papst RadiCal Series Centrifugal Fan, 230 V ac, 975m³/h, AC Operation, 190 (Dia.) x 91mm

ebm-papst EC Centrifugal Fan

The ebm-papst centrifugal fan has an airflow of 600m³/h at a fan speed of 4120rpm and has a supply voltage rating of 230VAC. It is an electronically commutated motor fan with an external rotor motor. This centrifugal fan is integrated within the impeller that reduces installation dimensions. The fan is featured with backwards-curved blades. It is an ideal solution for a wide range of applications and also suitable for intake suction use. The scroll housing is open on both the sides for added efficiency and reduction in noise level. The robust and space-saving design of this ebm-papst centrifugal fan makes it versatile and easy to use. It is 190mm long and 91mm deep.

Note
To prevent overloading the motor, these blowers must be operated against the minimum static pressures.

Features and Benefits

Low-pressure centrifugal solutions
Fitted with highly efficient GreenTech EC motor
Aerodynamic shape reduces noise emissions
Hybrid construction makes impellers highly corrosion-resistant
EC control options available

Applications

Control cabinet cooling
In-line duct fans
Home ventilation units
Heat pumps

Certifications

EN 60335
CE certified
IP54 rated
