1714971, Phoenix Contact MKDS 5/ 2-9.5 Series PCB Terminal Block, 2-Contact, 9.52mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact 9.52mm COMBICON MKDS 5 Series PCB Terminal Blocks

9.52mm pitch COMBICON MKDS 5 Series PCB vertical through hole mount terminal blockswith a 6mm² rising cage clamp screw connection. These 9.52mm MKDS 5 Series PCB terminal blocks are available with 2 and 3 position bases for versatile configurations.. Stock numbers 803-0611 and 803-0602 have anti-rotation pins.
For screw driver see 390-9641

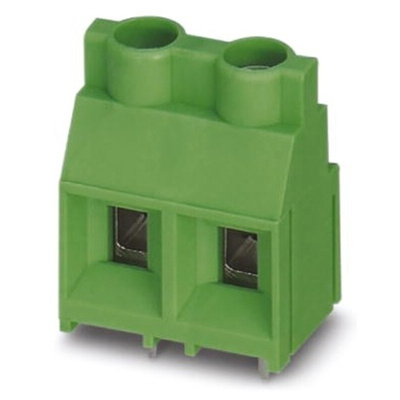

Phoenix Contact Terminal Block, 9.52 mm Pitch, 2-way - MKDS 5/2-9.5 - 1714971

Use this terminal block from Phoenix Contact to isolate, ground and protect wiring on a PCB (printed circuit board). Its screw connectors are robust and deliver a reliable connection that's easy to undo or adjust.
The unit's polyamide housing is exceptionally strong and offers excellent resistance to abrasion and wear. It's is also flame retardant and meets UL (Underwriter Laboratories) 94 V-0 flammability standards. This means there's no chance of the unit catching alight, even in hot conditions. In addition, it maintains a consistently low temperature and won't cause your PCB to overheat.
The design of this terminal block makes it compatible with most circuit boards. Its screw-in connectors can accept wires across a wide diameter range. With a compact structure, this component won't take up much space on your circuit board. It allows a PCB to be packed efficiently and wired to more peripheral devices.

• Straight body orientation
• Green colour
• Current rating of 32 A
• Male gender
• Through-hole mounting type
• 2 contacts
• Single row
• Voltage rating of 1 kV
• Pitch of 9.52 mm
• Dimensions of 10.04 (length) x 12.5 (width) x 21.5 mm (depth)

Phoenix Contact COMBICON 9.52mm Pitch PCB Terminal Blocks

MKDS 5/ 2-9,5
