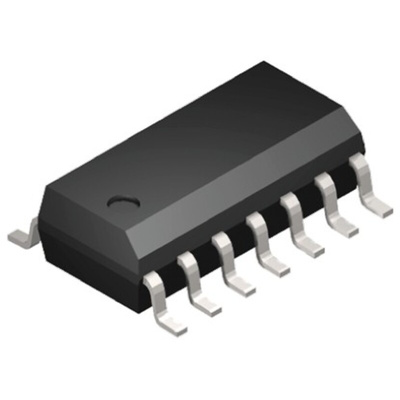

Microchip PIC16F753-I/SL, 8bit PIC Microcontroller, PIC16F, 20MHz, 2k words Flash, 14-Pin SOIC, Микроконтроллер

PIC16F753/HV753 8-Bit Flash Microcontrollers

The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F753 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory and 128 bytes RAM. On board is a configurable oscillator factory calibrated to ±1% accuracy.

Microcontroller Features

20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable Frequencies 8 MHz to 31 kHz
12 I/O Pins
Power-On Reset (POR)
Brown-Out Reset (BOR)
Power-Up Timer (PWRT)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)

Peripherals

8 Channel 10-bit Analogue-to-Digital Converter (ADC)
9-bit Digital-to-Analogue Converter (DAC)
Two Comparator Modules
Operational Amplifier
Capture, Compare, PWM (CCP) Module
Three 8-bit Timers
One 16-bit Timer
Two Hardware Limit Timers (HLT)
Complimentary Output Generator (COG)
Fixed Voltage Reference (FVR)

PIC16F753/HV753 14/16-Pin, Flash-Based 8-Bit CMOS Microcontrollers Data Sheet
