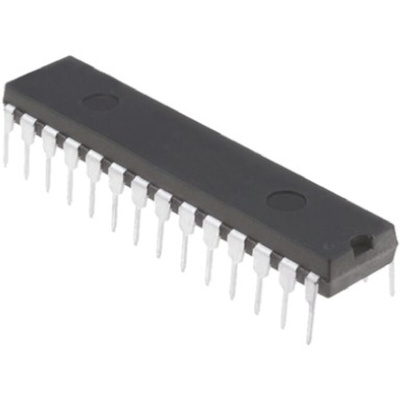

Microchip PIC16F1786-I/SP, 8bit PIC Microcontroller, PIC16F, 32MHz, 8192 words Flash, 28-Pin SPDIP, Микроконтроллер

PIC16F1784/1786/1787 8-Bit Flash Microcontrollers

The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F1784/1786/1787 family of microcontrollers is based upon Microchip’s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, up to 14 Kbytes program memory, RAM up to 1024 bytes and Data EEPROM of 256 bytes. On board is a configurable oscillator with ±1% accuracy.

Microcontroller Features

32 MHz Max. CPU Speed
49 Instructions
16 Level Hardware Stack
32 MHz Internal Oscillator – Selectable Frequency Range 32 MHz to 31 kHz
25 I/O Pins – PIC16F1786
36 I/O Pins – PIC16F1784/1787
XLP Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Extended Watchdog Timer (WDT)
Enhanced Low-Voltage Programming (LVP)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)

Peripherals

15 Channel 12-bit Analogue to Digital Converter (ADC) – PIC16F1784/1787
11 Channel 12-bit Analogue to Digital Converter (ADC) – PIC16F1786
8-Bit Digital to Analogue Converters (DAC)
Three Capture/Compare/PWM (CCP) Modules
Two Programmable Switch Mode Controllers (PSMC)
Three Operational Amplifiers - PIC16F1784/1787
Two Operational Amplifiers – PIC16F1786
Four Comparators
Two 8-bit Timers
One 16-bit Timer
Master Synchronous Serial Port (MSSP) with SPI and I2C
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
Fixed Voltage Reference (FVR)

PIC16(L)F1784/6/7 28/40/44-Pin 8-Bit Advanced Analog Flash Microcontrollers Data Sheet
