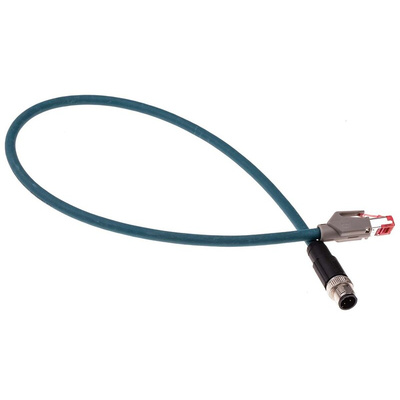

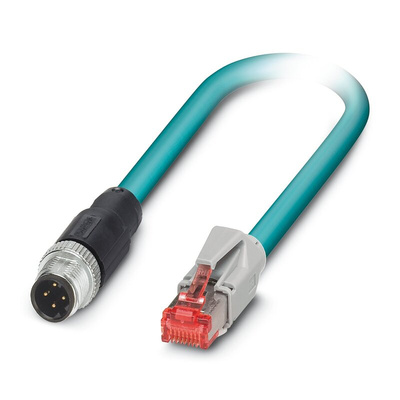

1408733, Phoenix Contact Cat5 Straight Male M12 to Straight Male RJ45 Ethernet Cable, Shielded, Blue PUR Sheath, 500mm, IEC, Кабельная сборка

Phoenix Contact Ethernet Cable, 4 Positions, 0.5m Length - NBC-M12MSD/ 0,5-93E/R4AC US - 1408733

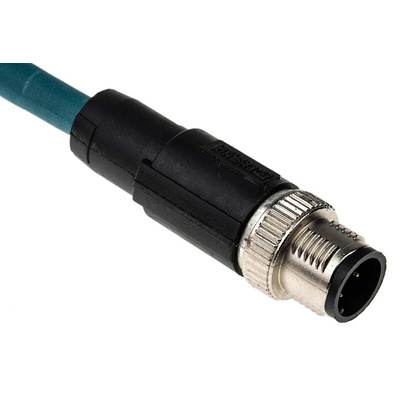

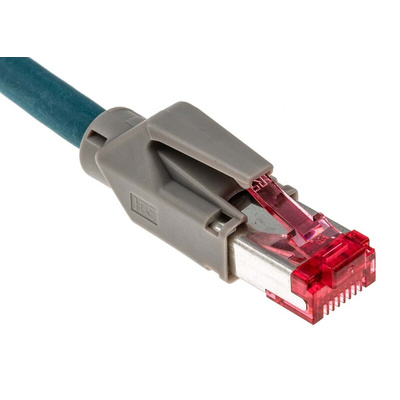

For rapid signalling in your automation network, wire up this Ethernet cable from Phoenix Contact. Running this unit from a modem to a field device lets you transmit data on a LAN at up to 100Mbps. At one end, there's an IP67-rated M12 connector that's waterproof up to 1m, so it's suitable for areas with immersion sensors, like plant and boiler rooms. The other end has a standard RJ45 connector.
This tough product withstands temperatures between -20°C and +80°C in flexible setups and goes as low as -40°C in fixed systems. Voltage ratings of 48V AC and 60V DC mean it's widely compatible with industrial power systems. Its shielding cuts crosstalk from nearby electronics to ensure your transmissions stay crisp and clear. The PUR outer sheath resists wear to provide you with a long service life.

Features & Benefits

• Complies with the IEC 61076-2-101 standard for the safe design of M12 screw-locking circular connectors
• Halogen-free type to prevent toxic and corrosive emissions in a fire
• Bend radius between 26 and 52mm for flexibility, so it's ideal for use in tight or awkward work areas
• Tested up to 700V for protection against sudden electrical surges
• IP20-rated RJ45 plug is touch-proof and protected against tools larger than 12mm

Datasheet 1408733
