1436013, Phoenix Contact Straight Male 5 way M12 to Straight Female 5 way M12 x 2 Bus Cable, 300mm, Кабельная сборка

Bus System Cable Assemblies, M12 Speedcon

A range of Speedcon M12 bus system connector cable assemblies, angled M12 connector to angled M12 connector. A-coded and compatible with CANopen and DeviceNet systems, M12 5 way connectors with PVC grey shielded cable in a variety of lengths to suit many applications.

Operating temperature range -25 to +90 °C
IP67 rated once mated

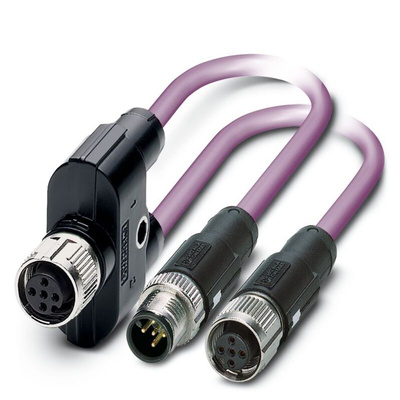

Phoenix Contact Straight M12 to Straight 2 x M12 Cable Assembly, 300 mm Cable - SAC-5PY-F/2X 0.3-920-MS-FS - 1436013

This straight cable assembly from Phoenix Contact has an industrial-standard M12 female socket input with two M12 outputs, one male (plug) and one female (socket). This allows you to connect a single data cable to two devices.
The cable has a polyurethane (PUR) sheath that's resistant to wear and corrosion and is extremely difficult to cut or tear, making this a durable product. It has an operating temperature range of -25°C to +90°C and an IP65 and IP67 ingress protection rating – meaning it's dust-tight, protected against water projected from a nozzle and against immersion for 30 minutes
This unit is designed for bus system cabling and provides communication paths for data and control signals within a computer system. It's A-coded and compatible with CANopen and DeviceNet systems.

• American Wire Gauge (AWG) size of 24
• 5 contacts on all connectors
• 5 cores
• Cable length of 300 mm
• Rated voltage of 60 V
• Rated current at 40°C of 4 A
• Cross-sectional area of 0.25 mm²
• Purple sheath colour

Bus system cable - SAC-5PY-F/2X 0,3-920-MS-FS - 1436013
