1212041, Phoenix Contact CRIMPFOX 50R Hand Crimp Tool for Wire Ferrules, Обжимные клещи

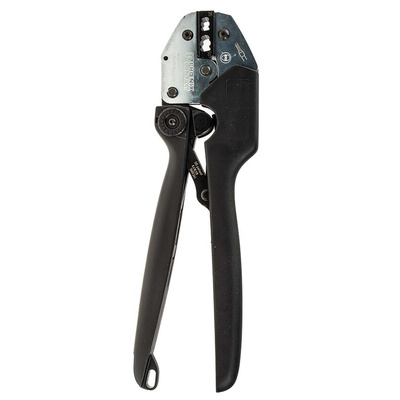

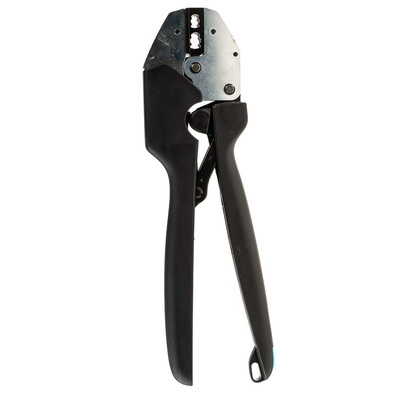

Phoenix Contact Crimping Pliers For Ferrules, 35 mm² to 50 mm² - CRIMPFOX 50R - 1212041

This Phoenix Contact crimping tool lets you join ferrules securely to conductors. It's designed to crimp cables with a diameter ranging from 35 mm² to 50 mm² and is useful in industrial applications where you need to wire small electrical components on printed circuit boards (PCBs).

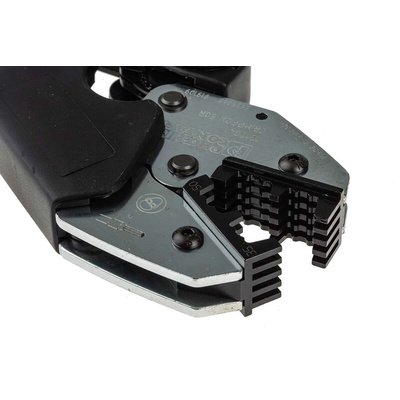

The pliers are user-friendly thanks to soft rubber handles that give you a reliable and comfortable grip. The handles also reduce the amount of force needed to form a crimp by 25%, which optimises leverage and lessens fatigue on your hand. A die allows for the easy insertion of wires into the side of the tool, while clearly marked die stations ensure that you can crimp your wires precisely.
The integrated pressure lock on these pliers makes sure you'll achieve a secure, air-tight crimp with high mechanical integrity every time. They're a good choice when wiring circuit boards that control industrial machinery.

• For ferrules with or without insulating collars
• For crimping ferrules according to DIN 46228-1 and DIN 46228-4
• WM crimp shape type
• Overall length of 256 mm
• Wire size of 2 to 1 American Wire Gauge (AWG)
