1212053, Phoenix Contact CRIMPFOX-RCI 2,5 Hand Crimp Tool for Insulated Terminals, Обжимные клещи

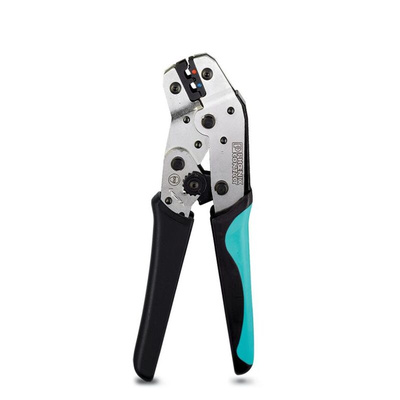

Phoenix Contact Crimping Pliers For Insulated Cable Lugs, 0.75 mm² to 2.5 mm² - CRIMPFOX-RCI 2.5 - 1212053

Use this crimping tool from Phoenix Contact to effortlessly join an insulated cable lug to a conductor. It forms a mechanically sound connection for wires ranging from 0.75 mm² to 2.5 mm².
The manual crimper creates a quick and simple connection that removes the need for soldering. Its ergonomic design fits comfortably into your hand for fatigue-free crimping. An integrated pressure lock ensures you apply just the right amount of compression to form a high-quality contact with long-term stability. This crimper has a color-coded die station to assist in creating the perfect join across its conductor cross-section range. As the die is replaceable, you can fit another one and continue using the tool when it has worn out.
A crimper such as this one is found in most electricians' toolboxes and is useful in many electrical applications. It's ideal for printed circuit boards where you need to make small electrical joins.

• Overall length of 198 mm
• Overall width of 18 mm
• Overall height of 59 mm
• Oval crimp compression type
• Wire size of 20 to 16 American Wire Gauge (AWG)
• Weight of 99.99 g

Phoenix Contact CRIMPFOX Hand Crimping Tools

Datasheet

Brochure
