CPX200DP, Aim-TTi CPX Series Digital Bench Power Supply, 0 → 60V, 0 → 10A, 2-Output, 360W - RS Calibrated, Блок питания

Aim-TTi CPX Series Power Supplies CPX200D & CPX200DP

A wide PowerFlex range extends maximum voltage to 60 volts, whilst the maximum current of 10 amps available up to 16 volts. S-Lock, Range Control, Voltage Tracking and Synchronous On/Off. The CPX200DP includes USB, LAN/Lxi, GPIB and RS232 digital interfaces. Test Bridge Data logging and Sequencing software to control up to 4 instruments is included.

Features and Benefits

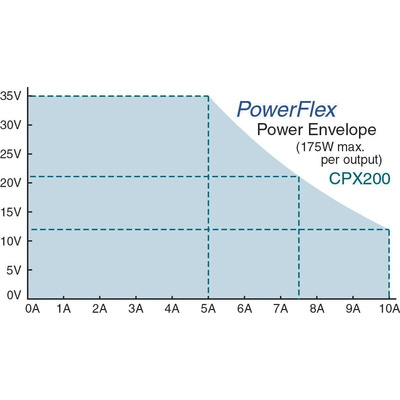

• PowerFlex design gives variable voltage and current combinations within a maximum power range


• Up to 60V and up to 10A per output (180W maximum per output)


• Low output noise and good transient response


• True analogue controls with digital settings locking


• Independent outputs or isolated voltage tracking


• Outputs can be wired in series or parallel for 120V or 20A


• 4 digit fixed resolution meters; selectable remote sensing


• GPIB, RS-232, USB and LAN/LXi interfaces (CPX200DP only)


• Test Bridge PC Software


• Compact 1/2 rack 3U case for bench use or rack mounting

Supplied with
type":"Supplied with",

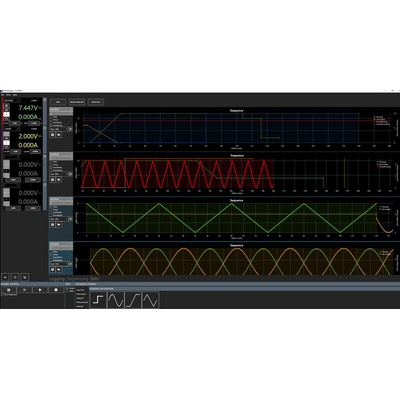

Test Bridge Logging and sequencing software

• Multi instrument control


• Logging to table and graph format


• Timed sequence control across all instruments and channels


• USB, LAN and RS232 compatible

AIM CPX Series Datasheet
