1500910, Phoenix Contact Straight Female 5 way M12 to Straight Male 5 way M12 Sensor Actuator Cable, 3m, Кабельная сборка

Sensor/Actuator 5 Way Cable Assemblies, M12 to M12, PUR Cable

M12 straight plug to M12 straight socket connector cable assembly, 5 way with a 0.3m halogen-free PUR cable. A-coded 4A 60V connectors with an IP67 rating once mated.

100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II
PUR halogen-free, black-gray RAL 7021

Approvals

UL, cUL, cULus, GOST.

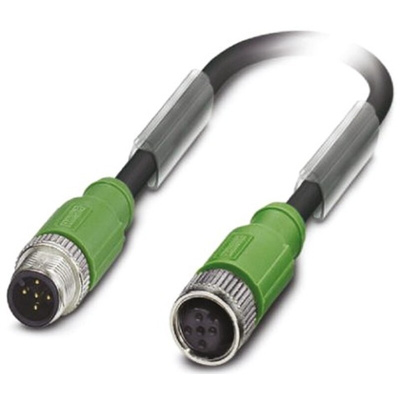

Phoenix Contact Straight Cable Assembly, M12 to M12, 3m - SAC-5P-M12MS/ 3,0-PUR/M12FS SH - 1500910

Looking for a reliable way to connect sensors and actuators to industrial machinery? Use this M12 cable assembly from Phoenix Contact. Thanks to the NBR (nitrile butadiene rubber) sealing material, the connectors are protected against dust and moisture for use in tough conditions. A 3m cable length enables flexible connections between devices in large areas.
This component has contacts are made of copper and zinc for reliable conductivity and signal transmission. The polyurethane (PUR) sheath material provides good electrical insulation and resistance to impact and wear, making it a safe and durable choice. It can withstand up to 4 million bending cycles, so you can be sure it will last a long time, even with frequent bending.
The cable assembly is suitable for use across a broad operating temperature range of -40°C to +80°C in a fixed installation, so you can use it in a variety of demanding environments. This product is commonly used in process control systems.

Features & Benefits

• UL94 V-0 (Underwriters' Laboratories) flammability rating means vertical burning stops within 10 seconds for increased fire safety
• Halogen-free construction to prevent exposure to toxic gases in the event of a fire

Sensor/Actuator cable - SAC-5P-M12MS/ 3,0-PUR/M12FS SH - 1500910
